Interroll Portec 25L34-90 | 90° Belt Power Curve Conveyor

Using the Interroll Portec manual you uploaded, I was able to include manufacturer-supported features without making unsupported claims. The manual confirms that the SG/SL Belt Power Curve uses a positive mechanical belt/chain drive, engineered tapered end rolls, and is designed for smooth product transfers and easy maintenance.

Website Description

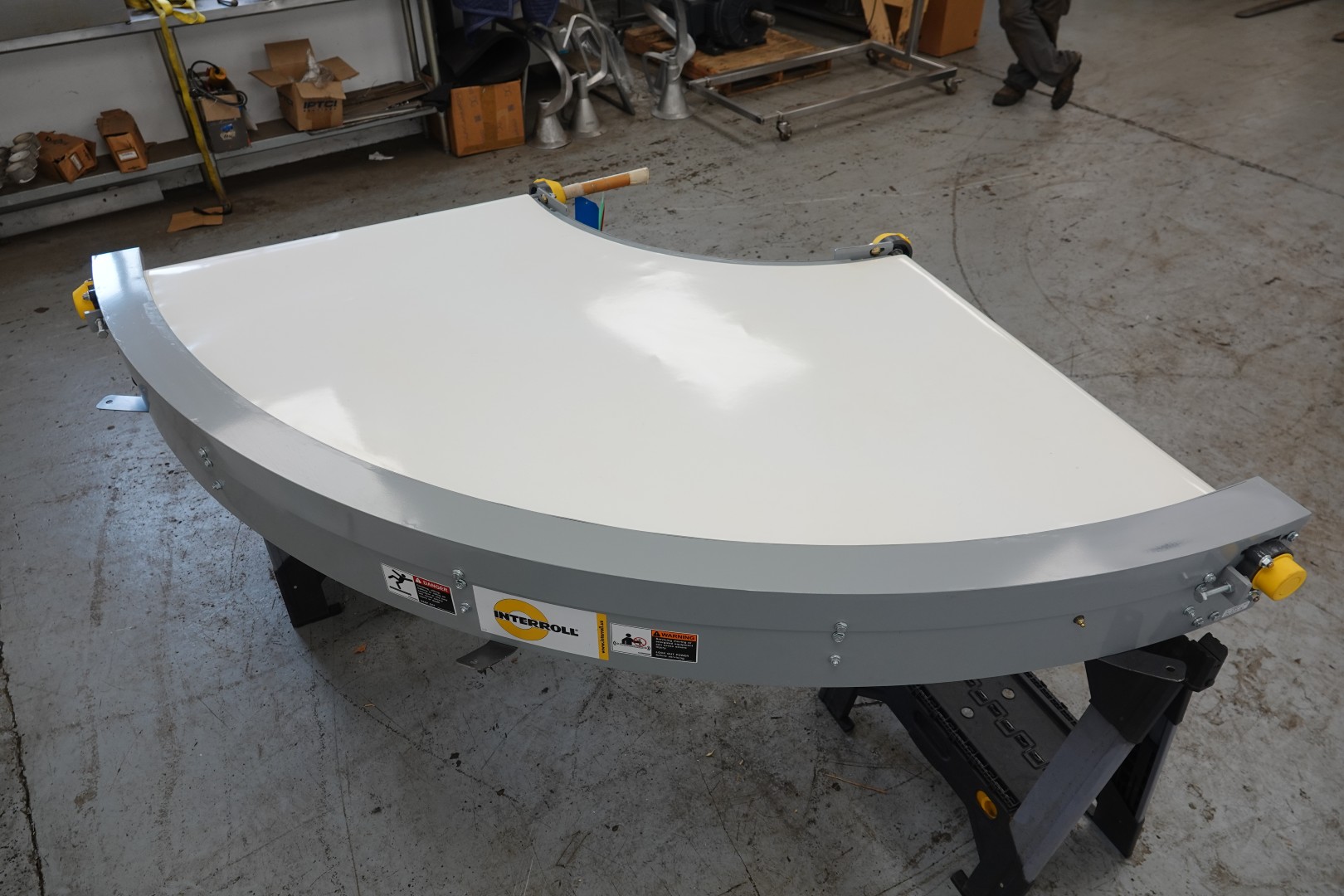

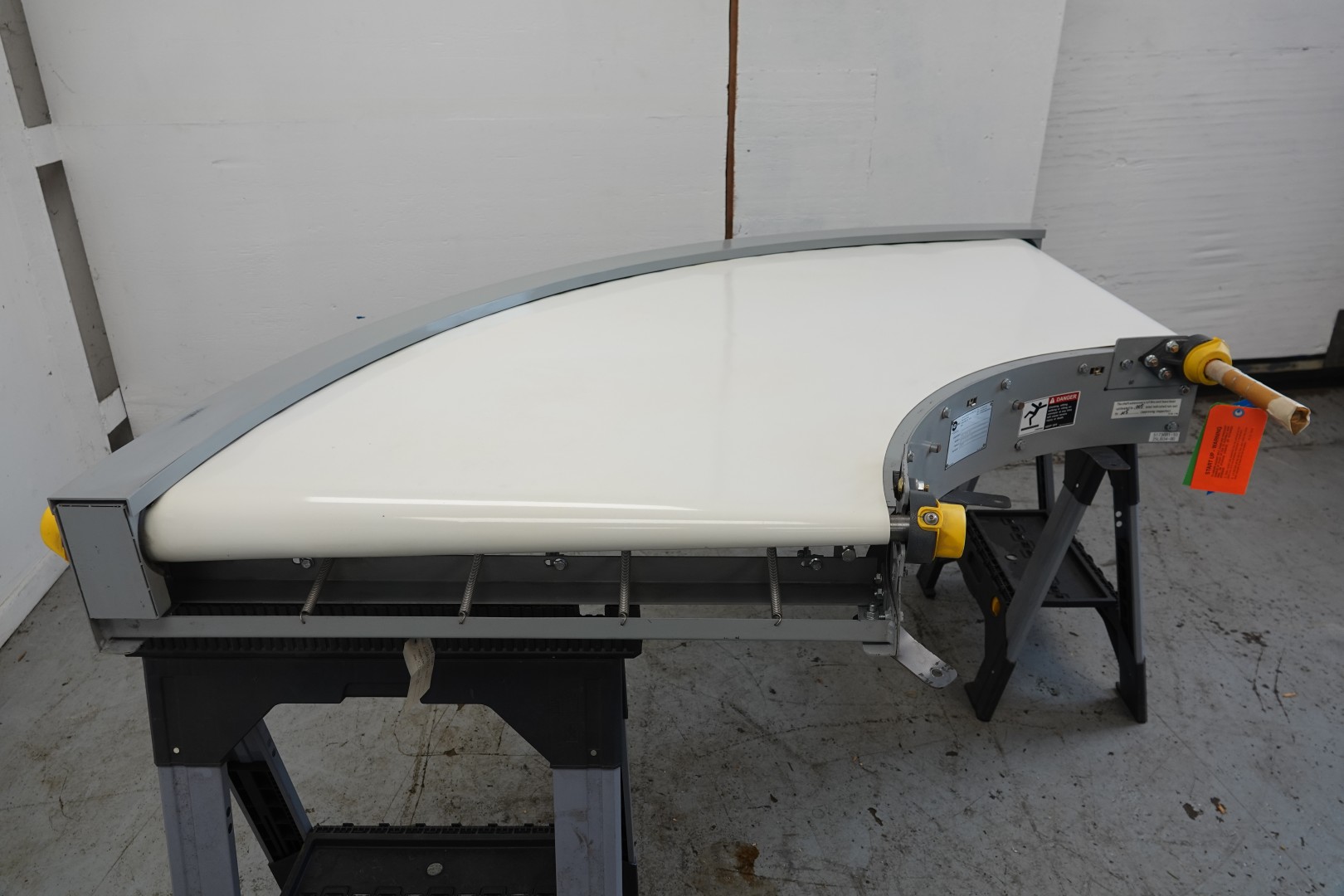

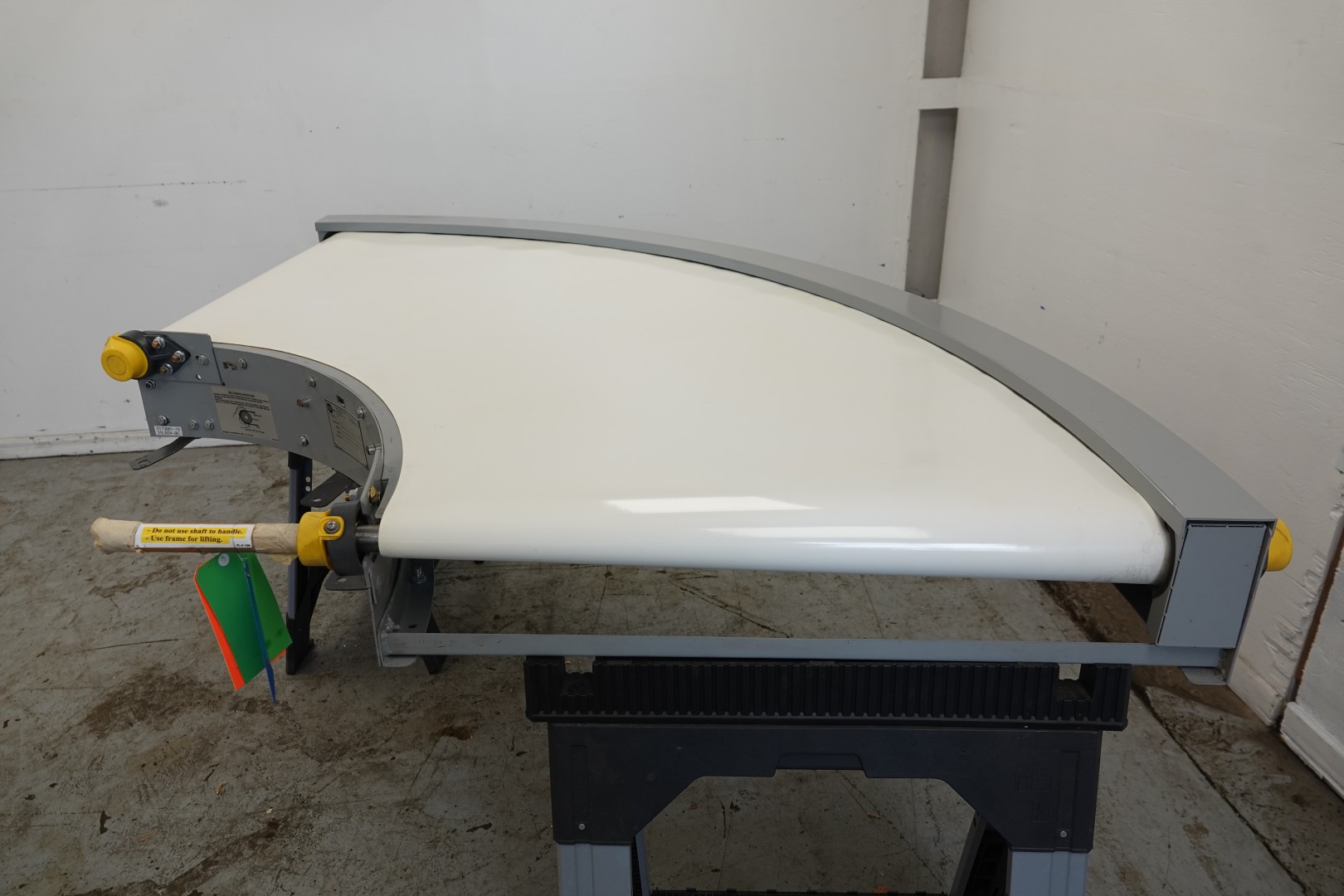

The Interroll Portec Model 25L34-90 SG/SL Belt Power Curve is a heavy-duty 90-degree conveyor engineered to provide smooth, reliable product transfers in automated conveying systems. Its powered curve design maintains consistent product orientation while maximizing production floor space and minimizing transfer points.

The SG/SL Belt Power Curve features a positive mechanical belt-and-chain drive system that eliminates dependence on friction drive. As a result, the conveyor delivers consistent belt tracking while operating with lower belt tension. Additionally, the engineered tapered end rolls allow the belt to travel naturally from the inside radius to the outside radius. This design helps reduce belt wear and improves long-term performance.

Furthermore, the conveyor is built for continuous-duty industrial service. The one-piece frame design provides excellent structural rigidity, while removable chain covers and sideguards simplify maintenance and belt replacement. The manual also includes procedures for belt replacement, preventive maintenance, and chain adjustment, making routine service straightforward.

This particular conveyor is a Model 25L34-90 featuring a 34-inch conveying width with a 90-degree curve. It is well suited for bakery, food processing, packaging, distribution, and general material handling applications requiring smooth product flow through production lines.

Specifications

▲ Manufacturer: Interroll Portec

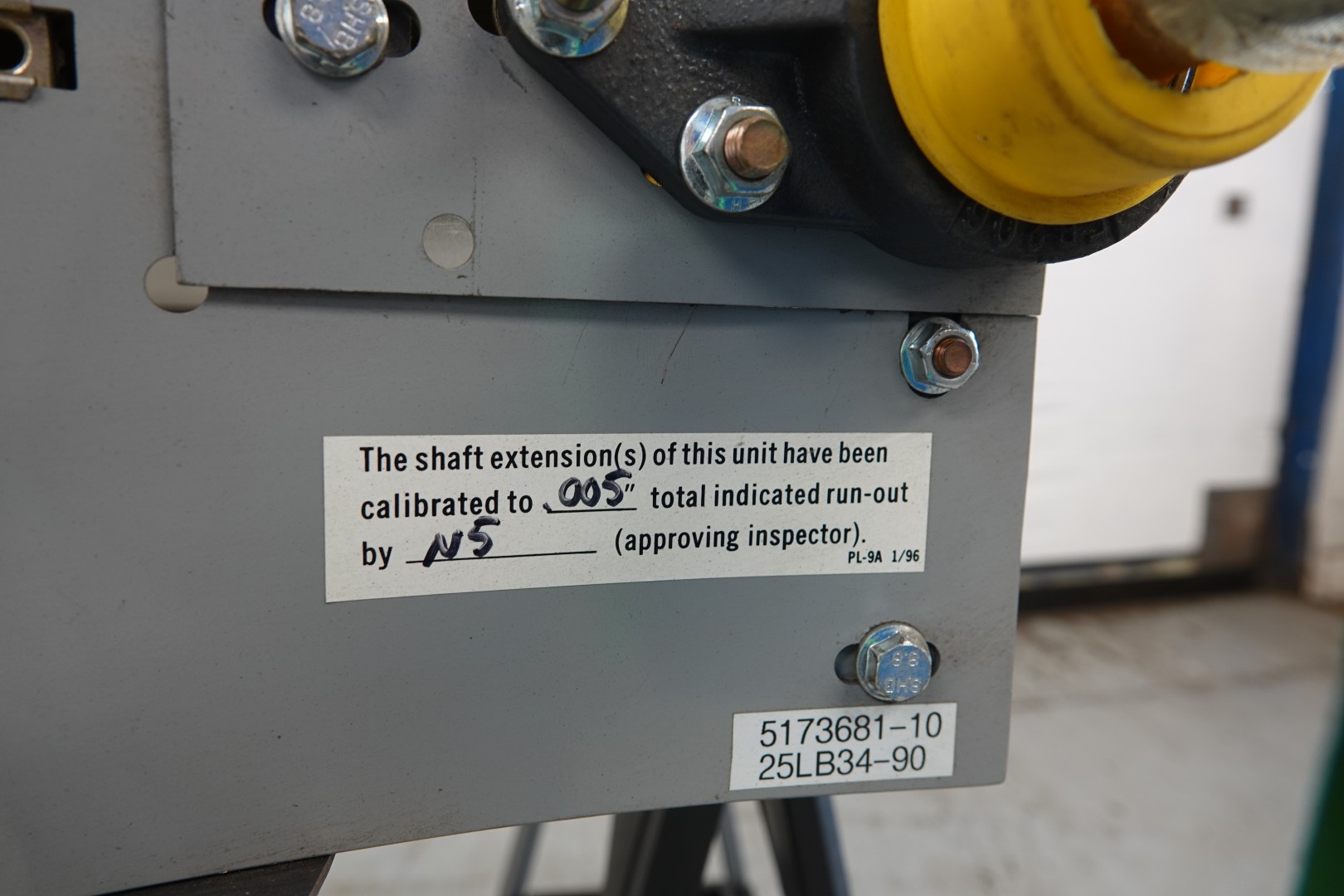

▲ Model: 25L34-90
▲ Equipment Type: SG/SL Belt Power Curve Conveyor
▲ 90-degree powered curve conveyor
▲ 34-inch conveying width
▲ Positive mechanical belt-and-chain drive system

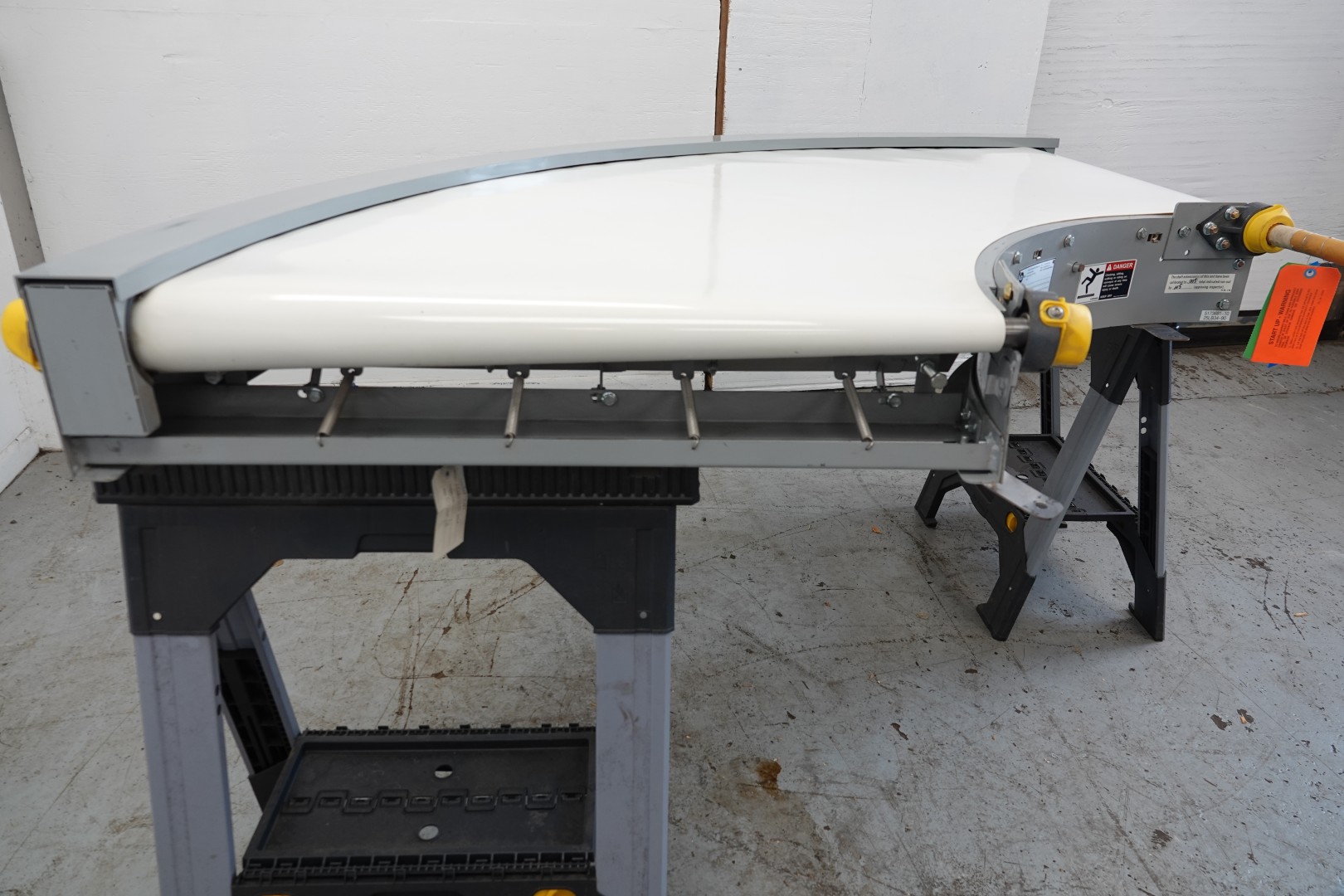

▲ Engineered tapered end rolls for reduced belt wear

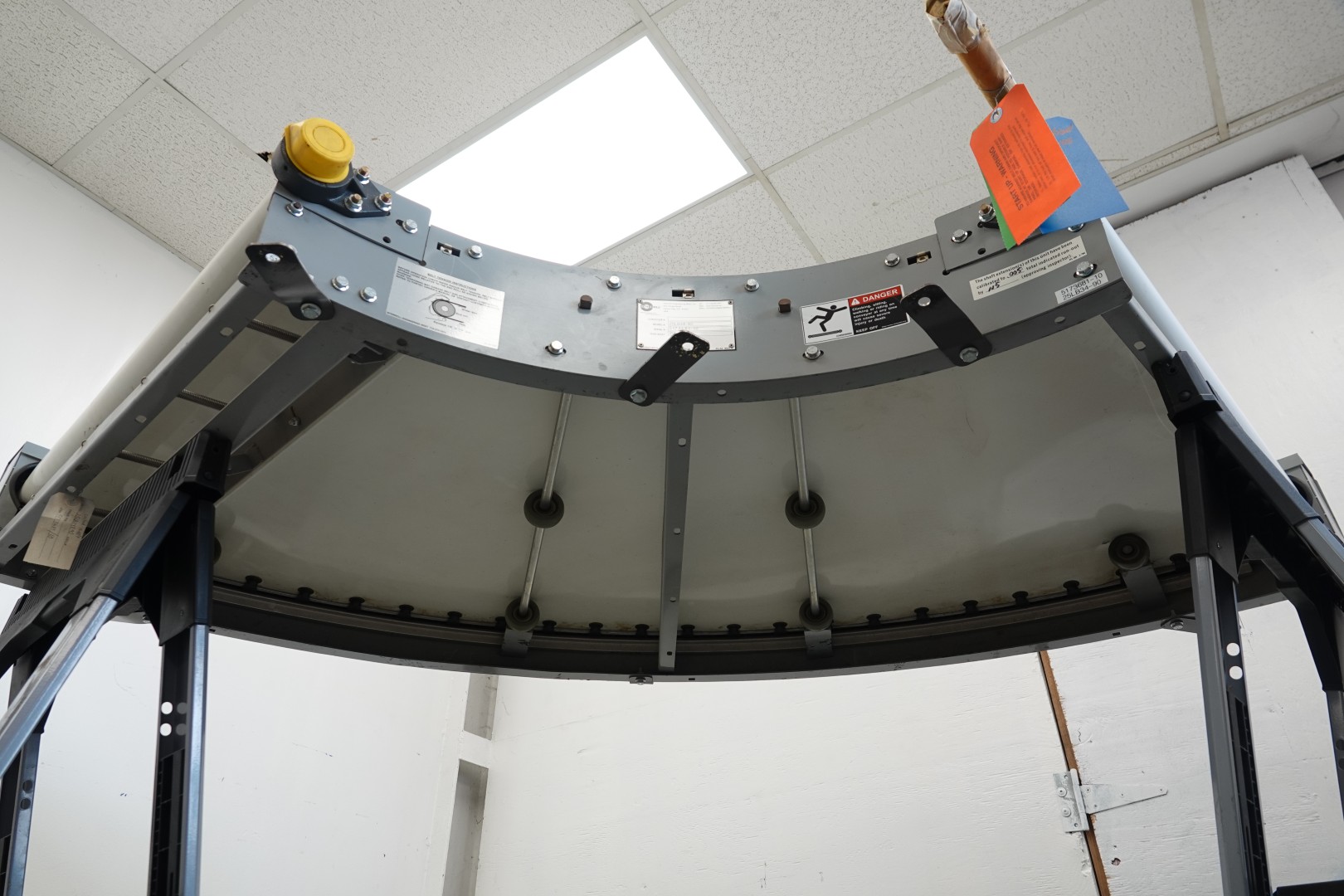

▲ One-piece heavy-duty conveyor frame
▲ Removable chain cover for simplified maintenance
▲ Designed for continuous-duty industrial operation
▲ Ideal for bakery, food processing, packaging, and material handling applications
