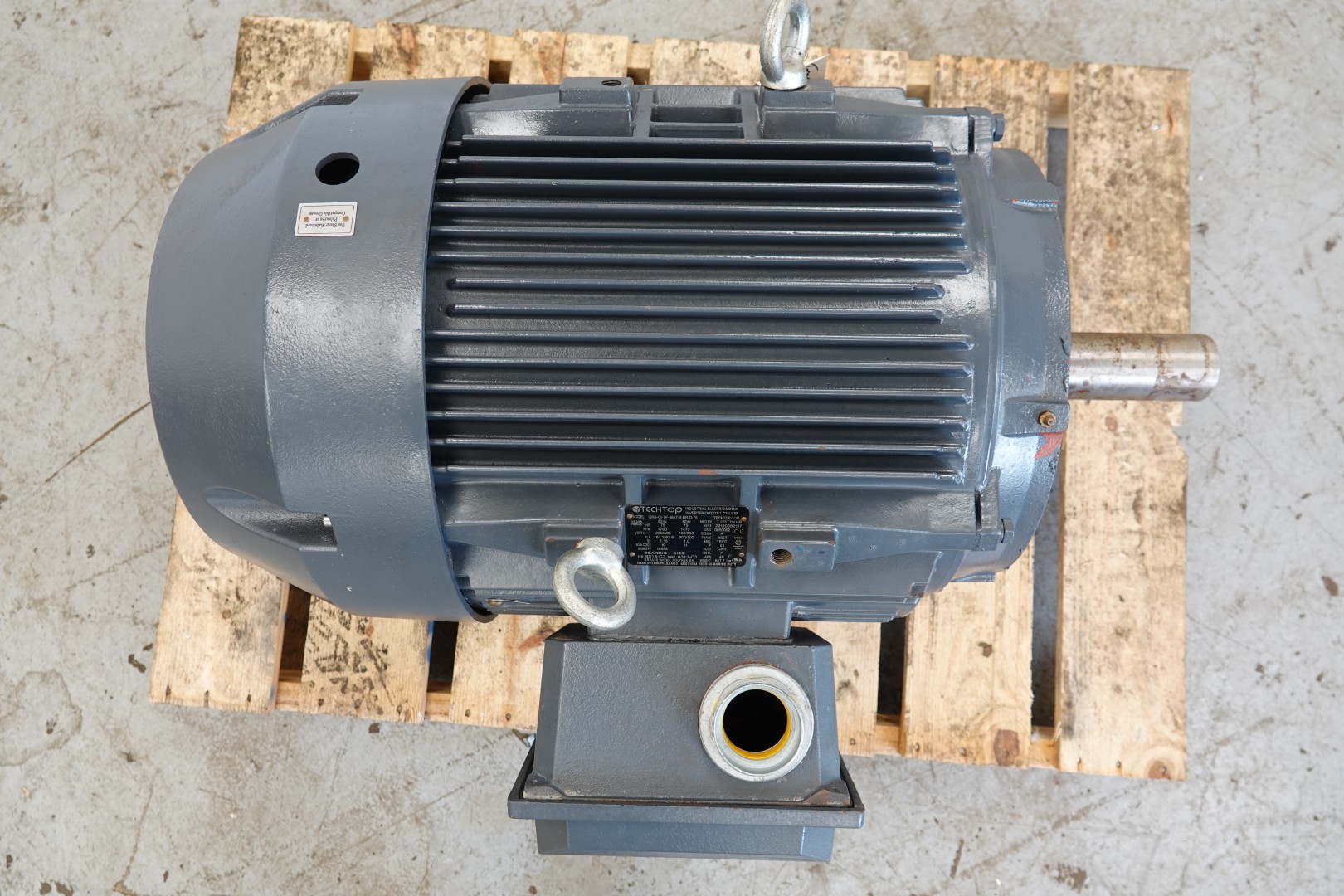

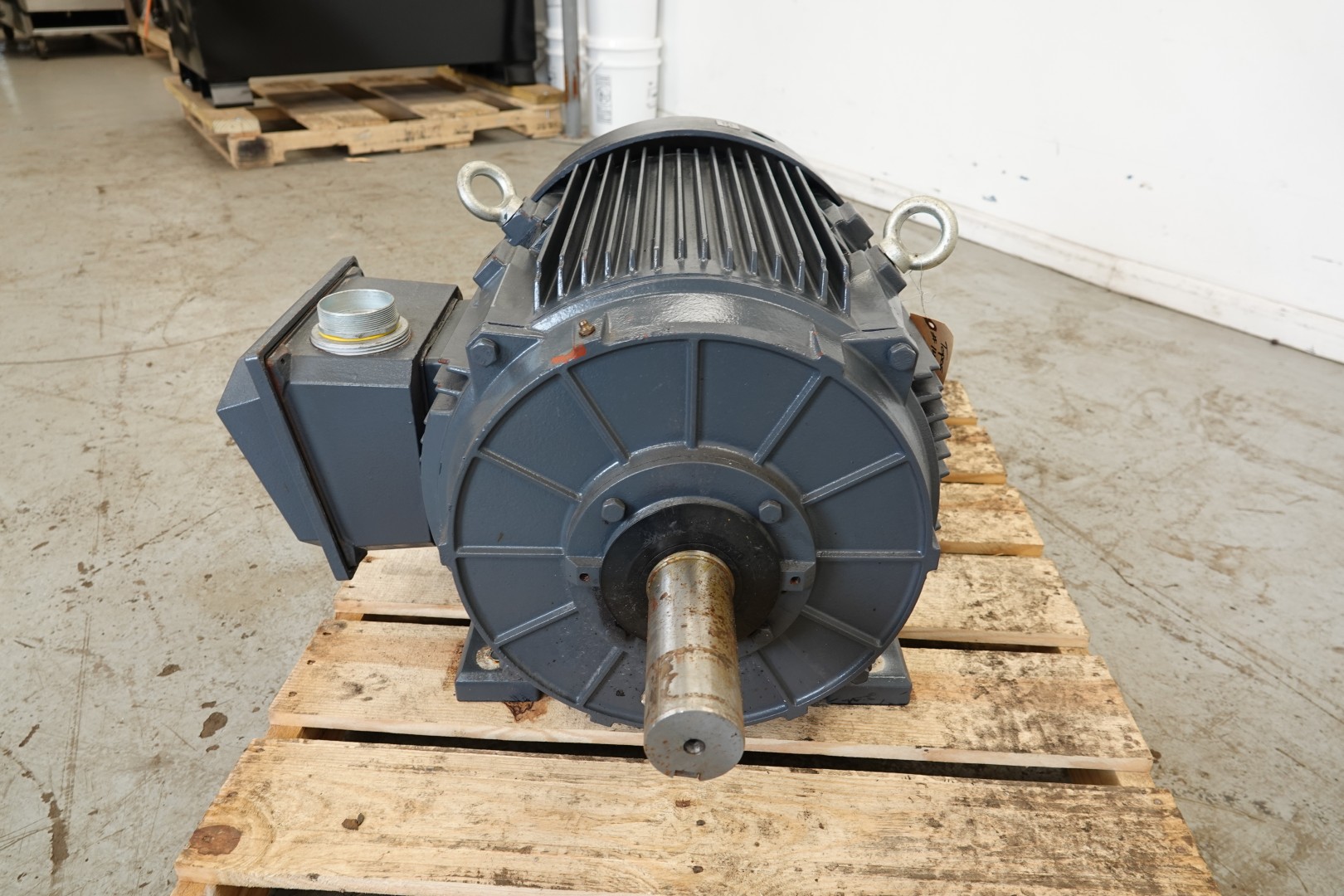

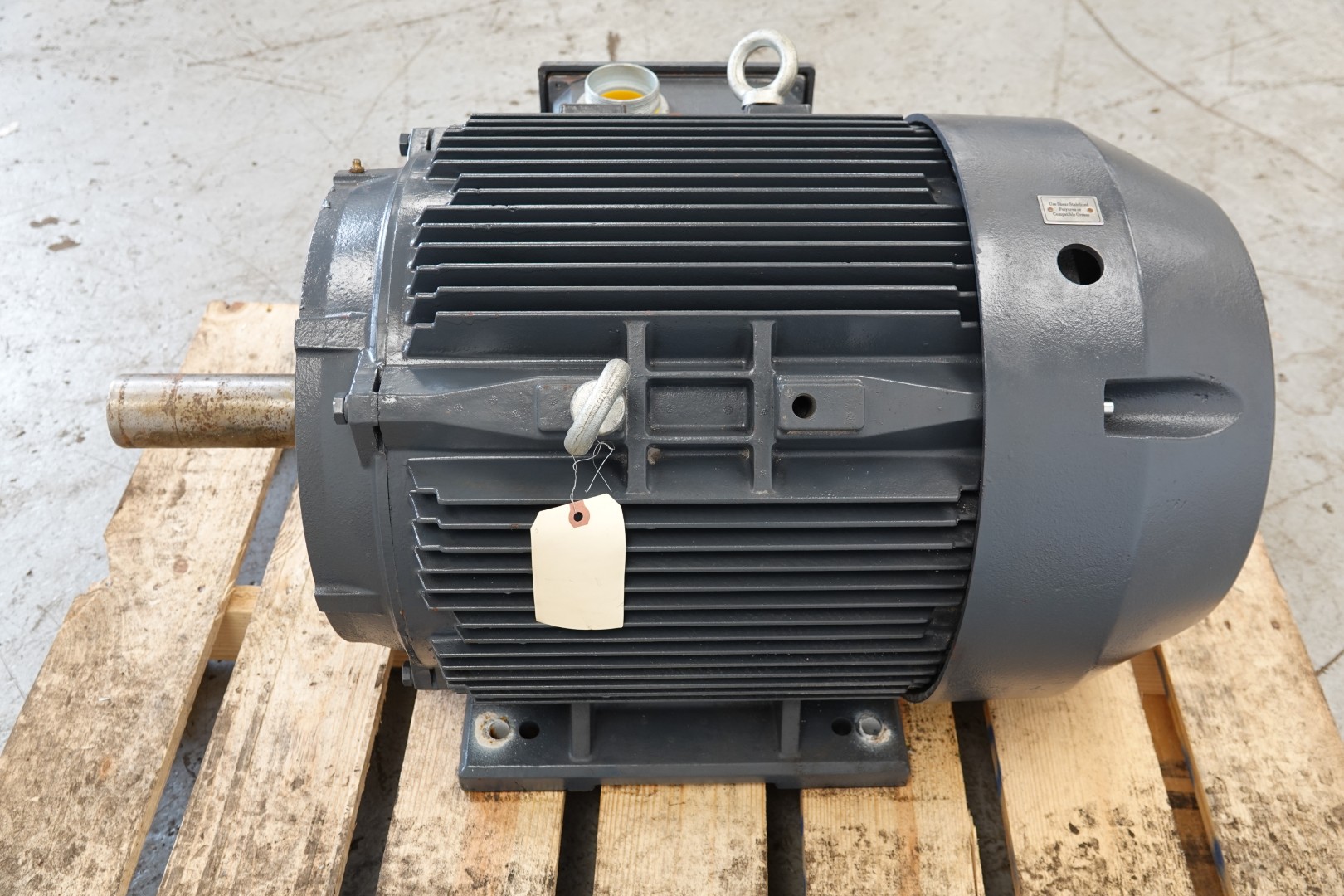

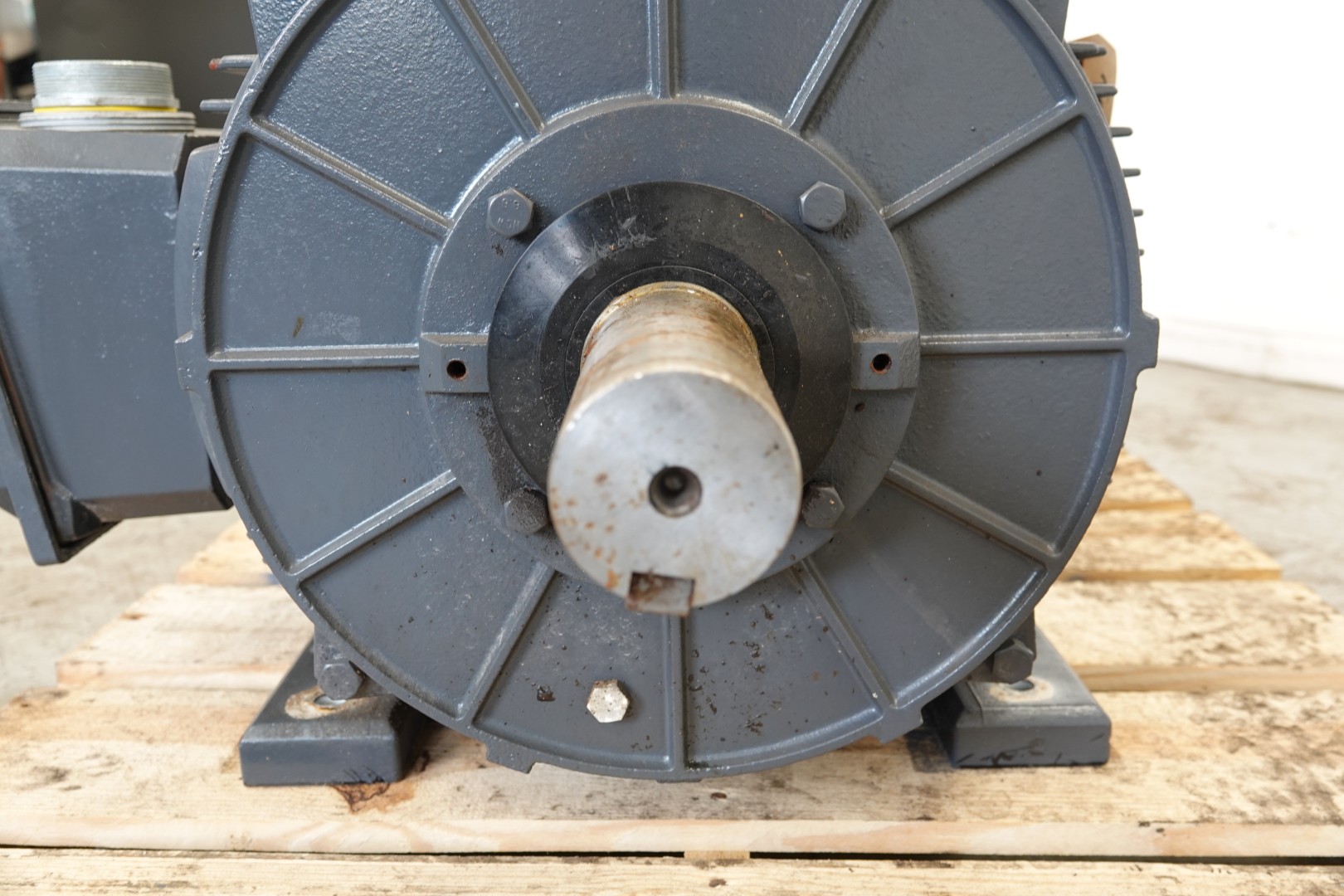

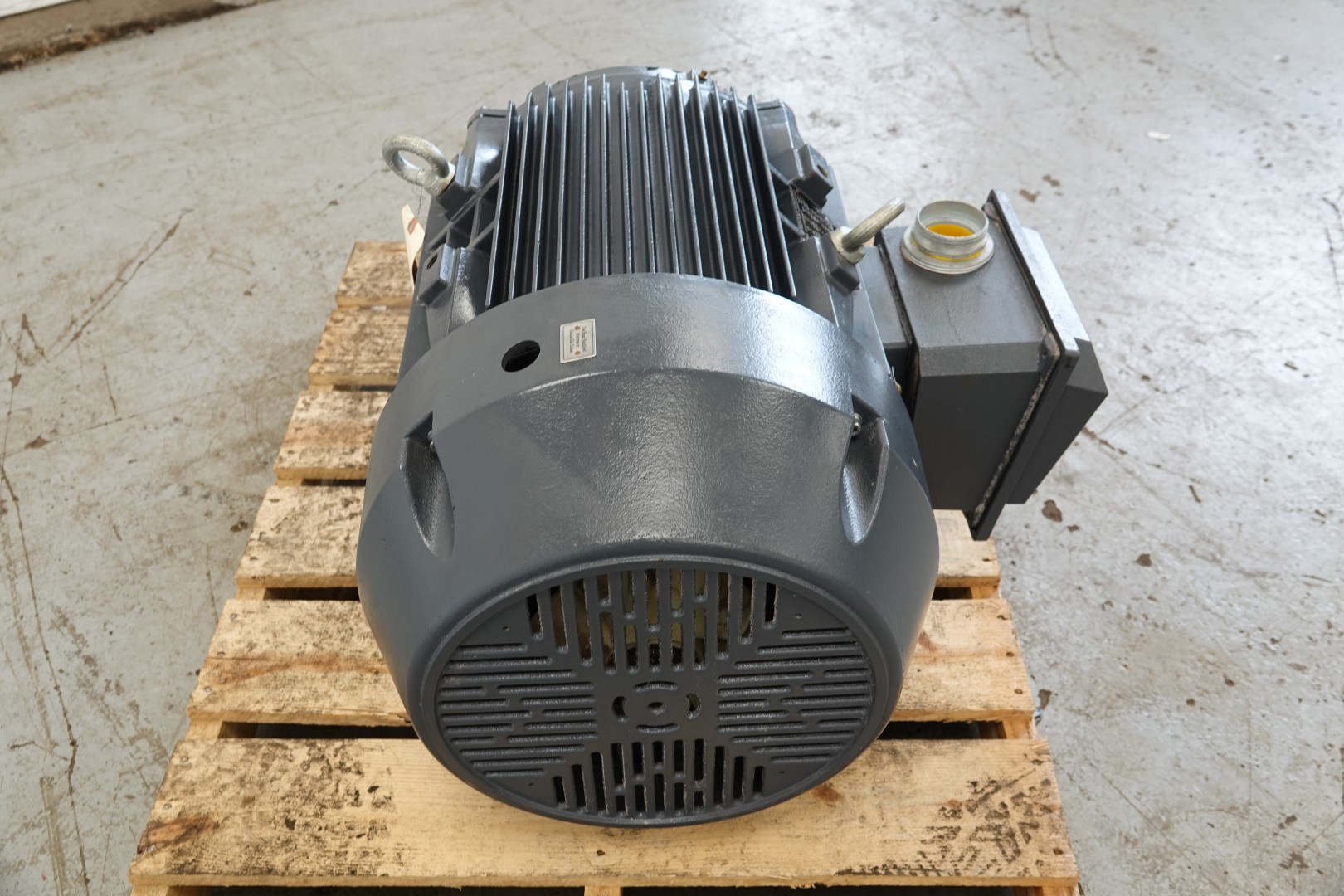

TechTop 75 HP Industrial Electric Motor 230/460V 365T TEFC

TechTop industrial electric motor only [no gearbox] ,designed for demanding food production and industrial processing applications. This heavy-duty 75 HP inverter-duty motor features a totally enclosed fan cooled (TEFC) design for reliable performance in harsh environments and continuous-duty operation. Built with a rugged 365T frame and Class F insulation, this motor is ideal for mixers, pumps, conveyors, processing systems, and other high-torque equipment requiring dependable power and VFD compatibility.

Key Features
▲ 75 HP industrial electric motor
▲ 230/460V, 3 phase, 60 Hz operation
▲ 1,780 RPM operating speed
▲ Inverter duty rated 15:1
▲ NEMA Premium efficiency design
▲ Totally enclosed fan cooled (TEFC) enclosure
▲ Continuous-duty rated construction
▲ 365T frame size
▲ IP55 protection rating
▲ Class F insulation system
▲ Approximate weight: 857 lbs.
▲ Heavy-duty industrial construction for demanding applications

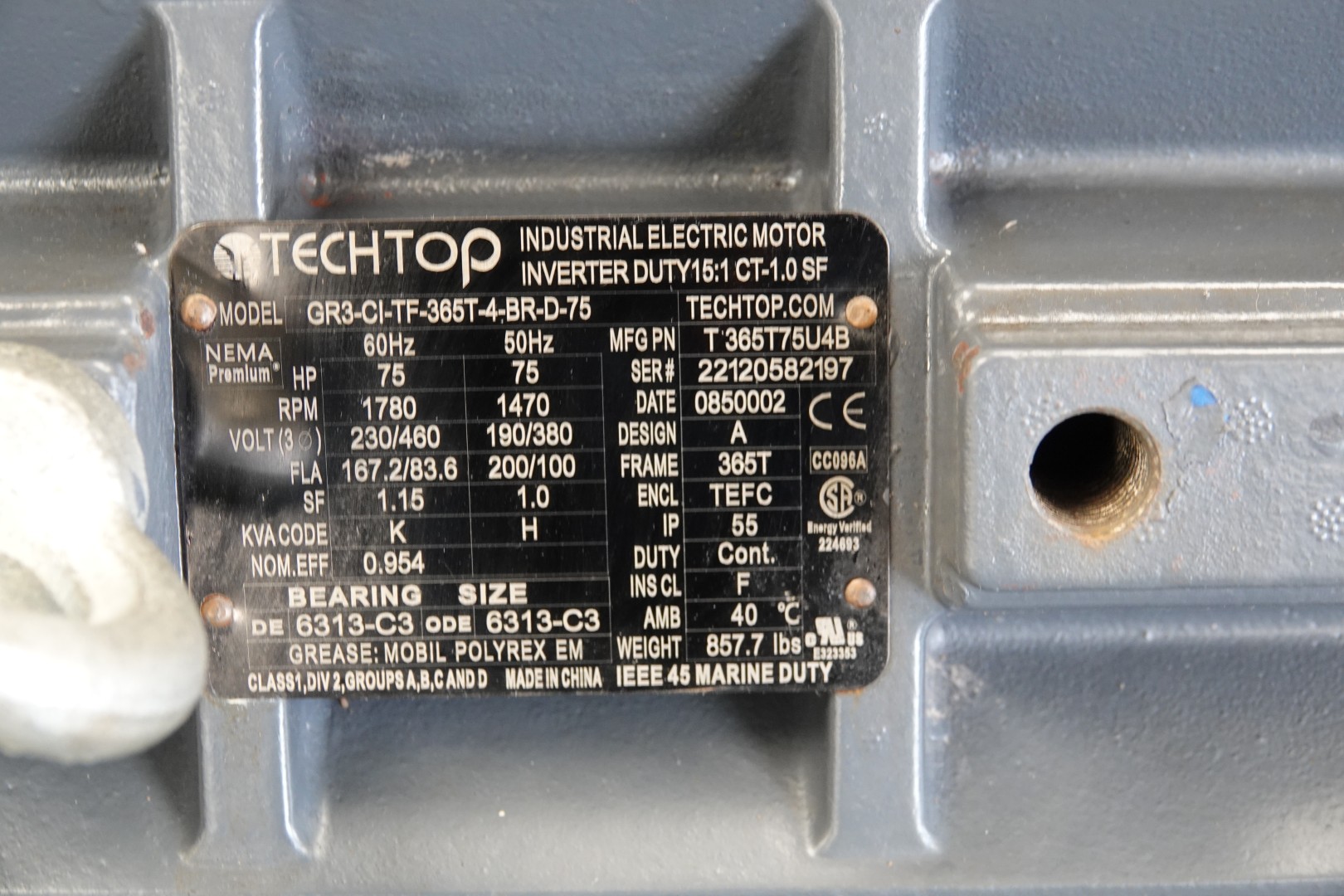

Manufacturer: TechTop
Model: GR3-CI-TF-365T-4-BR-D-75
Frame: 365T
Serial Number: 22120582197
