Horizontal Mixers > Open Frame Single Sigma Horizontal Mixer

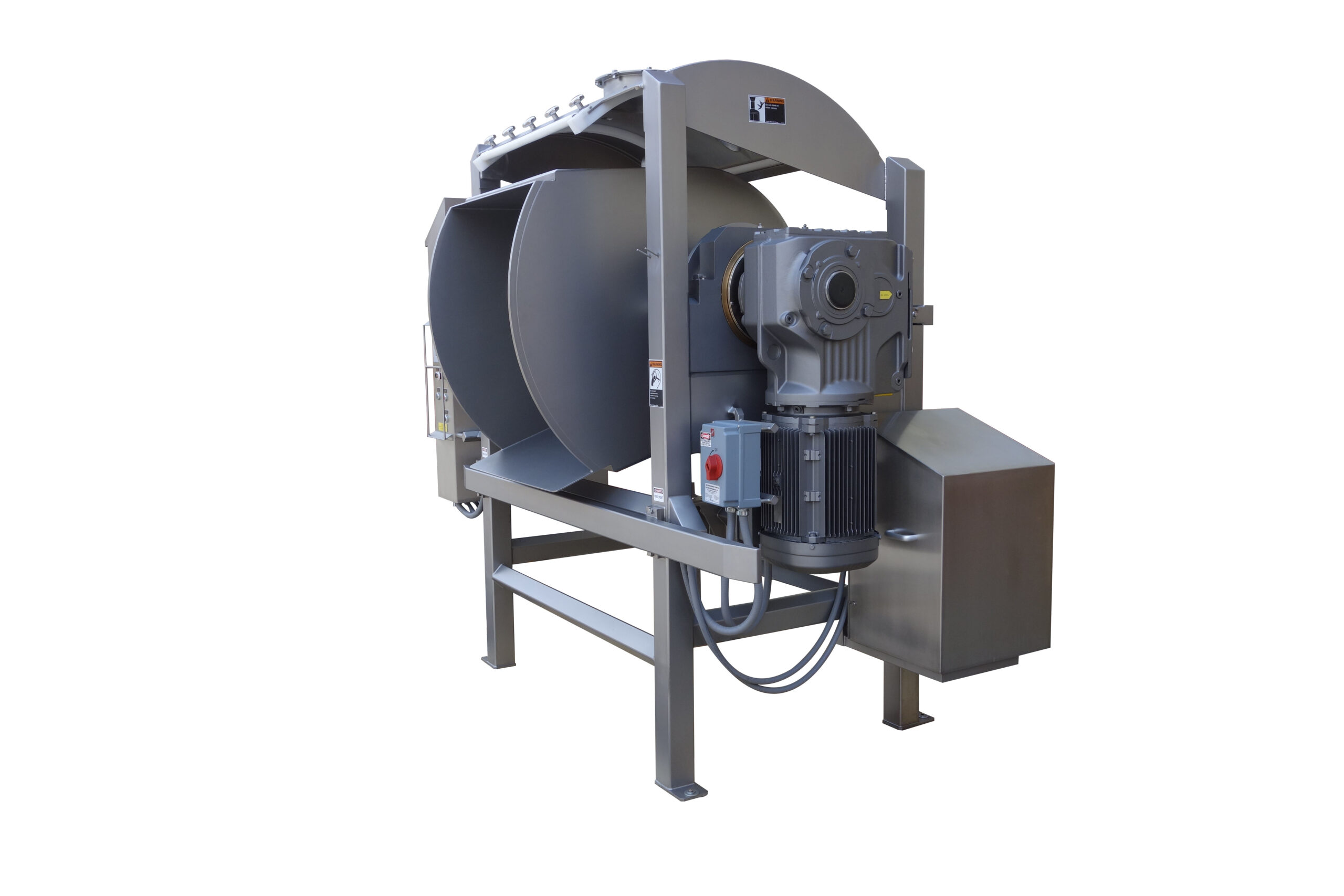

Open Frame Single Sigma Horizontal Mixer

Share

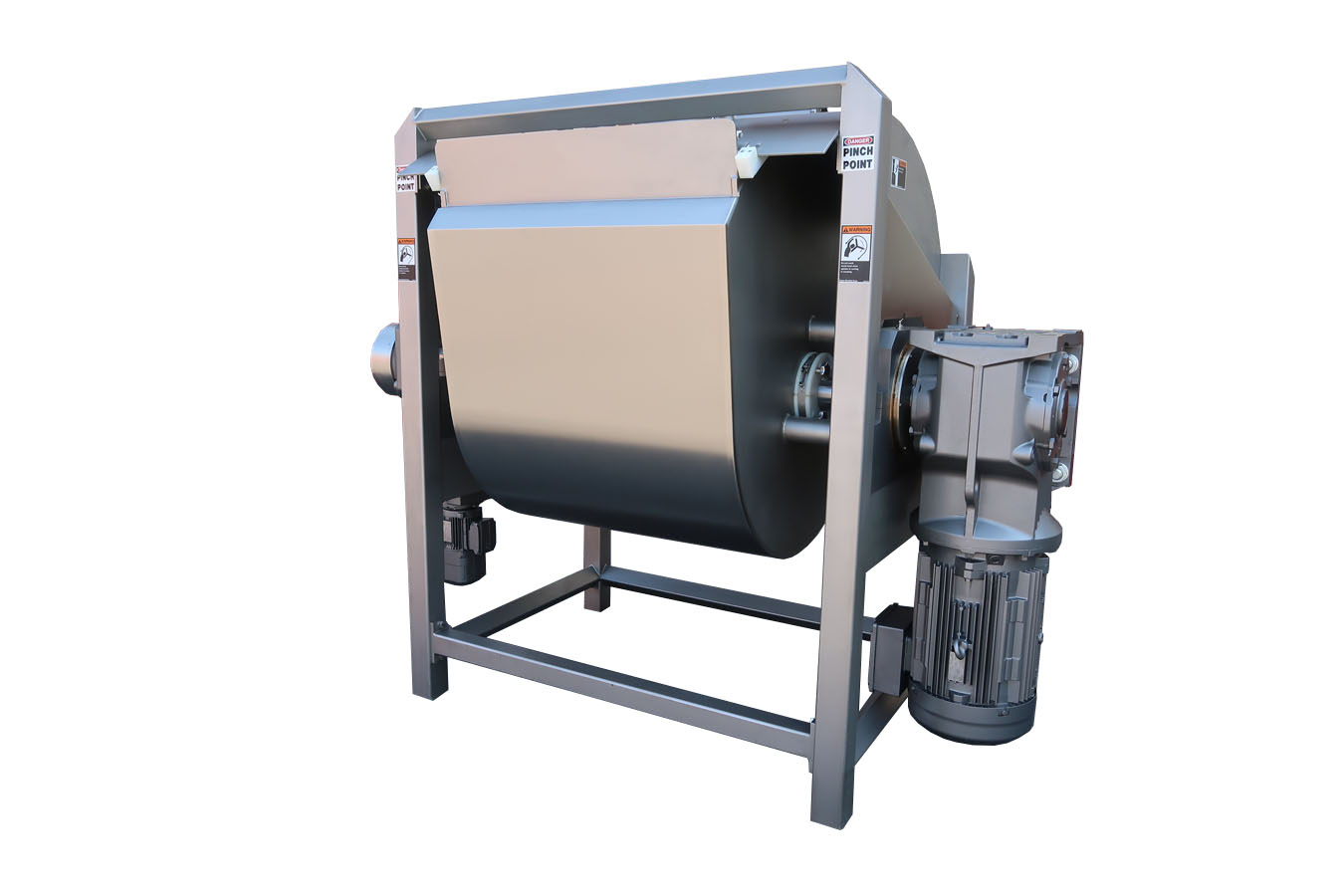

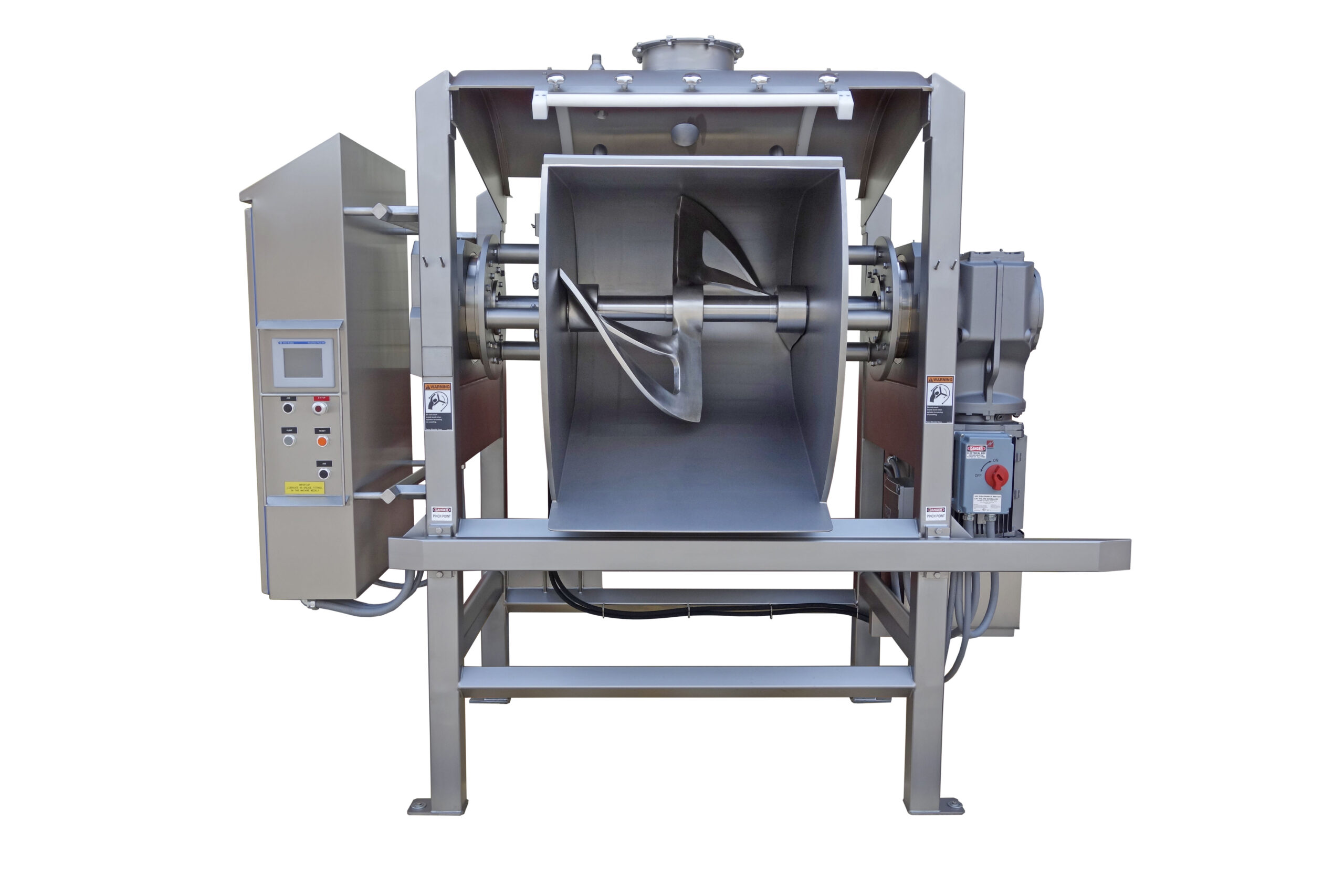

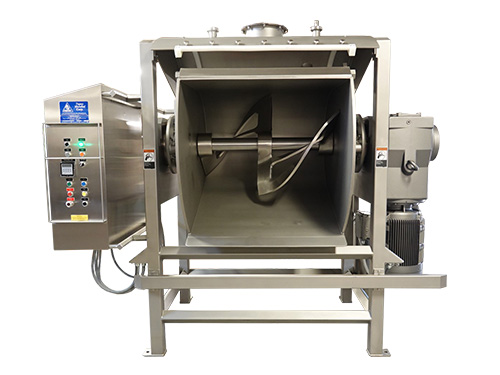

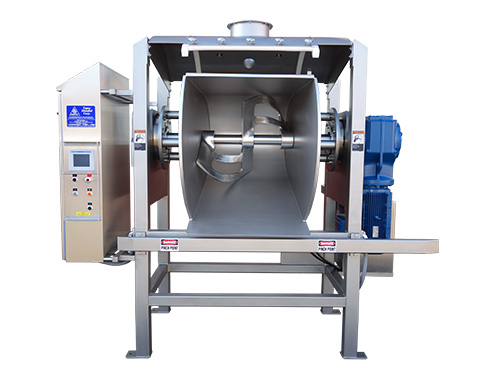

Topos Mondial offers the Single Sigma, “Open Frame,” Sanitary Designed, 110-degree over-tilt horizontal bakery mixer (SSOFHM) in sizes from 600 lbs to 3,000 lbs. It features a single sigma agitator and a reinforced stainless steel mixing bowl for durability and sanitation. The bowl canopy, main shaft, and agitator are also stainless steel.

The mixer frame is available in mild steel with a “STEEL IT” coating or full stainless steel. Customizable controls ensure it meets your needs, with optional VFD controls and a dynamic brake for added versatility. The heavy-duty “Hytos” hydraulic bowl tilting system sits under a stainless steel lift-off cover for easy access and maintenance.

This horizontal mixer combines heavy-duty construction, sanitation, and reliable performance. Its durable and user-friendly design makes it an excellent choice for bakery mixing


MODELS* MIXING CAPACITYWORKING VOLUMEMAX VOLUMESPEED RANGE** POWER
THM-03OT800 lbs130 gal164 gal7-60 rpm24 hp
THM-05OT1300 lbs200 gal251 gal7-60 rpm50 hp
THM-06OT1600 lbs230 gal283 gal7-60 rpm50 hp
THM-07OT2100 lbs300 gal347 gal7-60 rpm60 hp
THM-08OT2400 lbs350 gal411 gal7-60 rpm76 hp
THM-09OT2800 lbs410 gal498 gal7-60 rpm100 hp
THM-10OT3400 lbs500 gal587 gal7-60 rpm125 hp
* Mixing capacity is based on 43% absorption dough.
** The indicated drive powers may be different according to the specific design (2 speeds / adjustable mixing intensity) or the customer’s wishes or needs.

Made by: Topos Mondial Corp

Quantity Available: Made to order

Share

Topos Mondial offers the Single Sigma, “Open Frame,” Sanitary Designed, 110-degree over-tilt horizontal bakery mixer (SSOFHM) in sizes from 600 lbs to 3,000 lbs. It features a single sigma agitator and a reinforced stainless steel mixing bowl for durability and sanitation. The bowl canopy, main shaft, and agitator are also stainless steel.

The mixer frame is available in mild steel with a “STEEL IT” coating or full stainless steel. Customizable controls ensure it meets your needs, with optional VFD controls and a dynamic brake for added versatility. The heavy-duty “Hytos” hydraulic bowl tilting system sits under a stainless steel lift-off cover for easy access and maintenance.

This horizontal mixer combines heavy-duty construction, sanitation, and reliable performance. Its durable and user-friendly design makes it an excellent choice for bakery mixing


MODELS* MIXING CAPACITYWORKING VOLUMEMAX VOLUMESPEED RANGE** POWER
THM-03OT800 lbs130 gal164 gal7-60 rpm24 hp
THM-05OT1300 lbs200 gal251 gal7-60 rpm50 hp
THM-06OT1600 lbs230 gal283 gal7-60 rpm50 hp
THM-07OT2100 lbs300 gal347 gal7-60 rpm60 hp
THM-08OT2400 lbs350 gal411 gal7-60 rpm76 hp
THM-09OT2800 lbs410 gal498 gal7-60 rpm100 hp
THM-10OT3400 lbs500 gal587 gal7-60 rpm125 hp
* Mixing capacity is based on 43% absorption dough.
** The indicated drive powers may be different according to the specific design (2 speeds / adjustable mixing intensity) or the customer’s wishes or needs.

Made by: Topos Mondial Corp

Quantity Available: Made to order

Ideal for:

Biscuits Frozen Dough Granola Bars Health Food Bars Cake Creams Crackers Pet Foods Rotary Moulded Cookies Corn Tortillas Masa Gluten Free Sweet Doughs Cheesecake Batters Muffins Fillings
Request a Quote Download Brochure Download Spec Sheet

Ideal for:

Biscuits Frozen Dough Granola Bars Health Food Bars Cake Creams Crackers Pet Foods Rotary Moulded Cookies Corn Tortillas Masa Gluten Free Sweet Doughs Cheesecake Batters Muffins Fillings
Request a Quote Download Brochure Download Spec Sheet



Product Videos

Standard Features

  1. The reinforced mixing bowl, the bowl canopy, the main shaft and the single/double sigma agitator are all solid stainless steel
  2. Available in Nominal Sizes for 600 lbs through 3400 lbs of mixing.

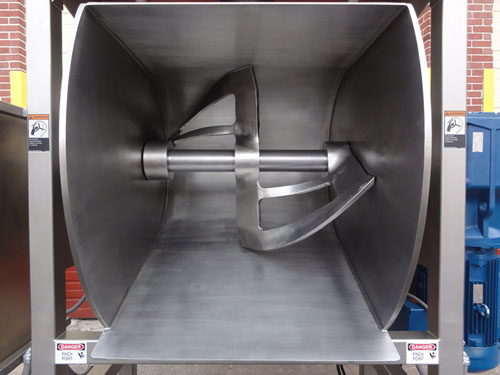

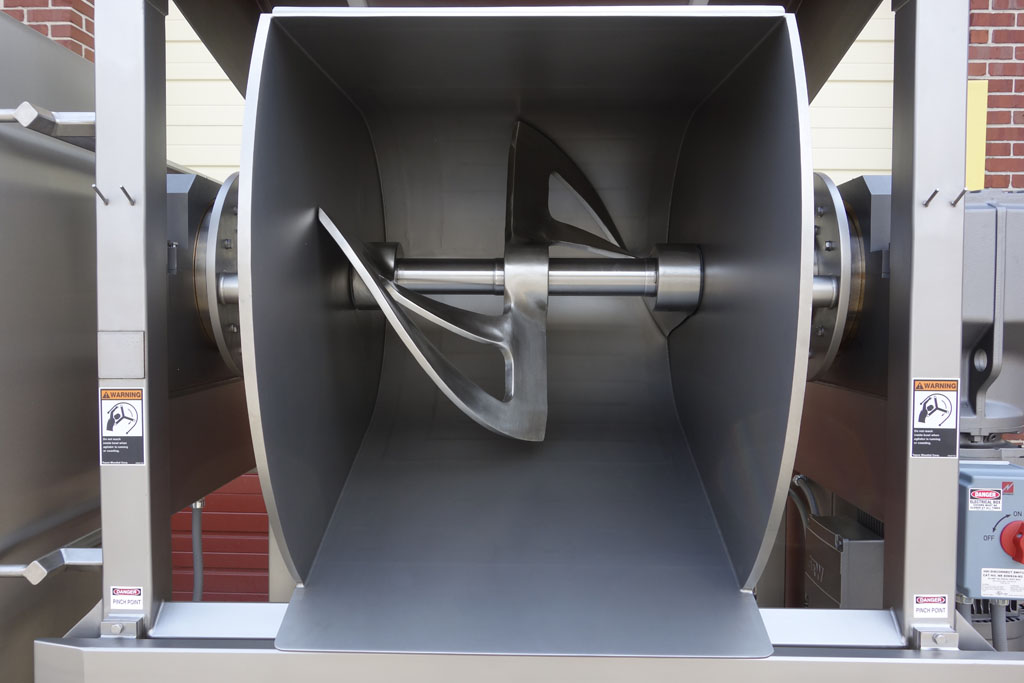

  3. The agitator design is a proven single sigma configuration.

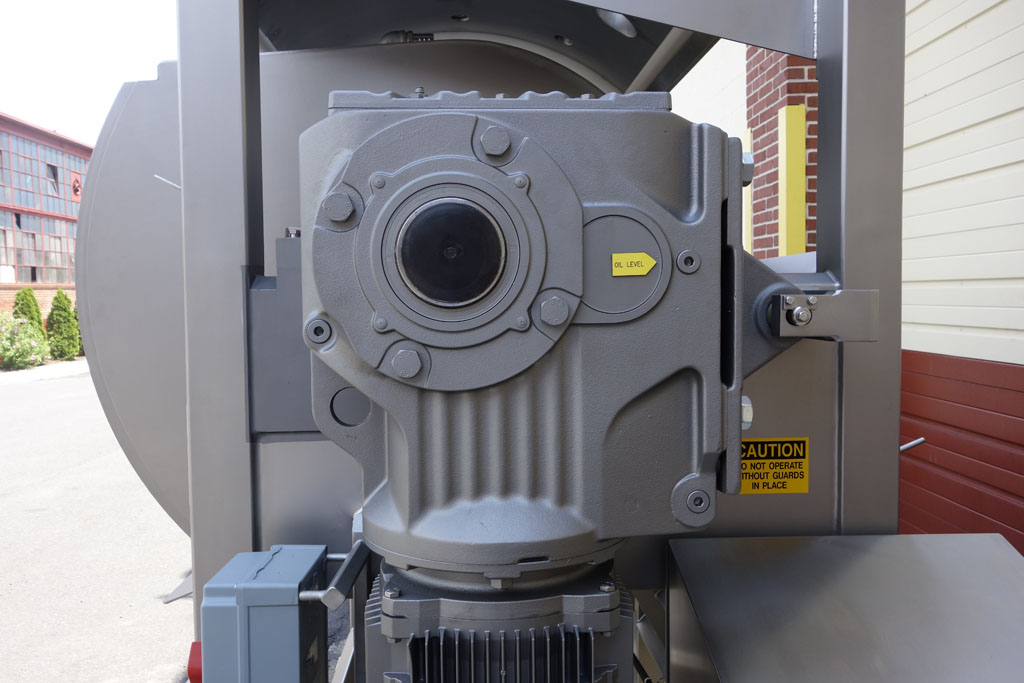

  4. Direct drive, high efficiency, gearmotor drive.

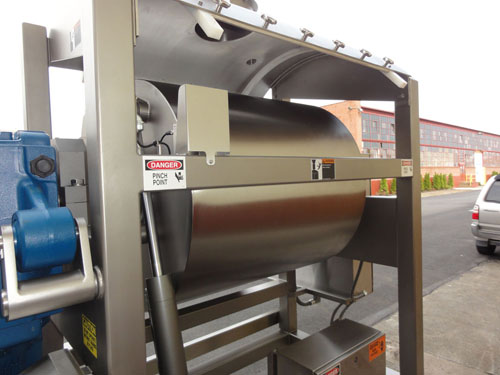

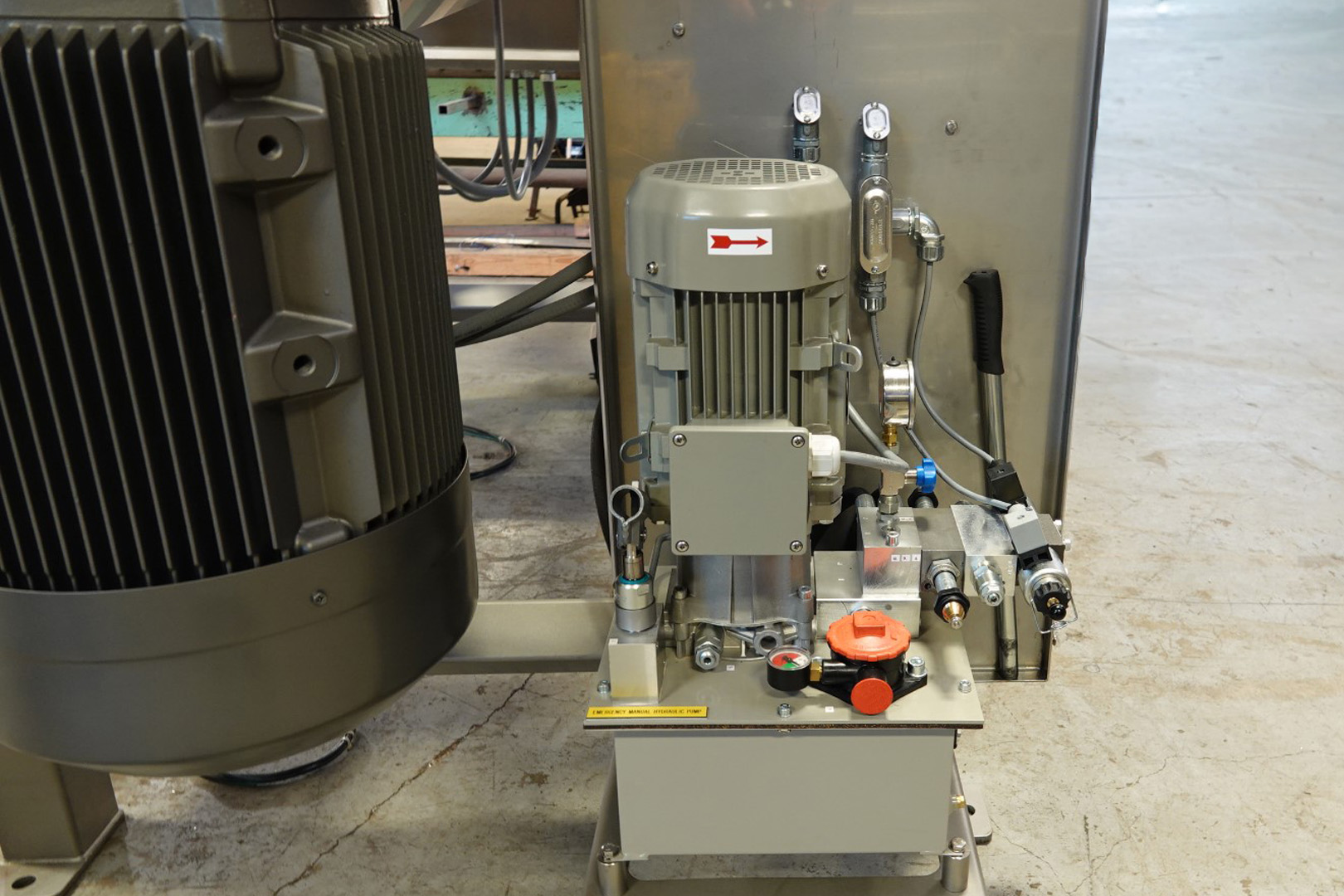

  5. Hydraulic package is covered with a lift off S/S cover, and includes the manual pump option.
  6. The mixer frames can also be made using mild steel coated in “STEEL IT” or from solid stainless steel.
  7. “Open Frame” Sanitary Design for fast and easy cleaning.
  8. The 110 degree overtilt horizontal mixer bowl is standard. Other overtilt angles are also available.

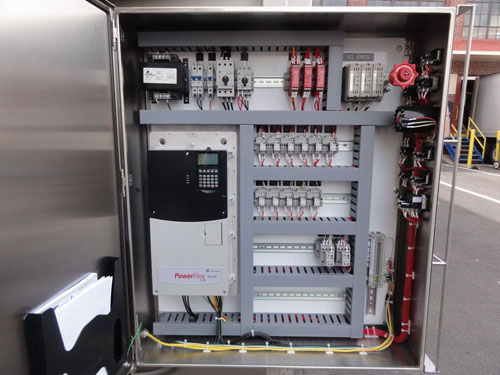

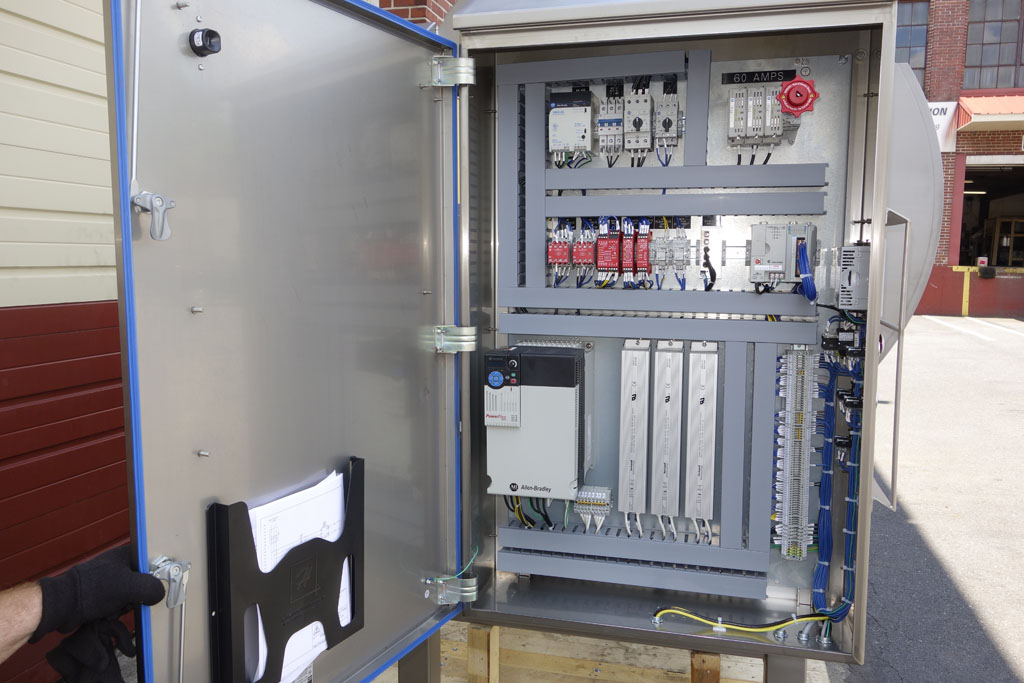

  9. All stainless steel NEMA 4x electrical control enclosure is built to suit with timers and relay logic or with PLC and Panelview controls.
Product Feature Map



Options & Accessories

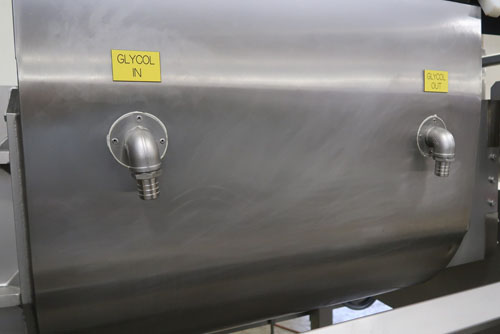

Bowl jacket
Bowl jacket

The optional bowl jacket is insulated and covered with a sanitary welded S/S cover.

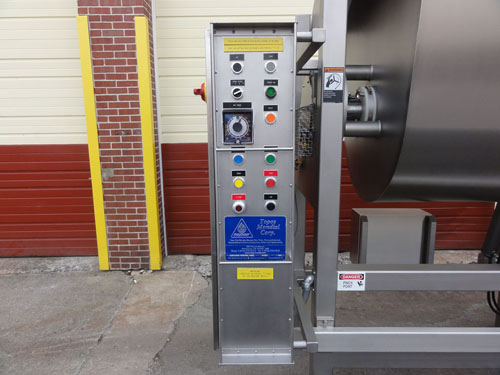

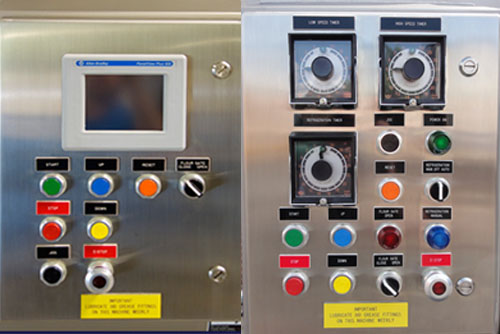

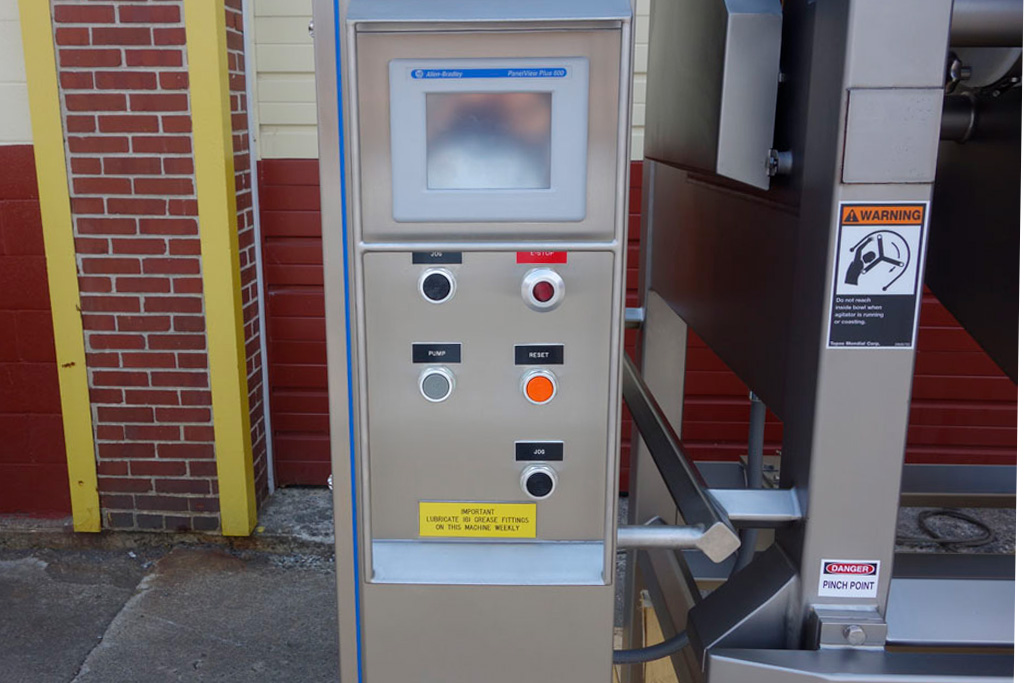

Mixer operator controls stations
Mixer operator controls stations

Mixer operator controls stations can be designed and built to meet the exact needs of the mixing process.

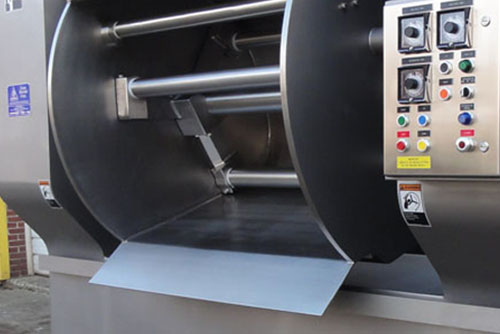

Bowl lips
Bowl lips

Front bowl edge pouring lips can be fabricated in various lengths and at various angles to achieve the best dough transfer needed.

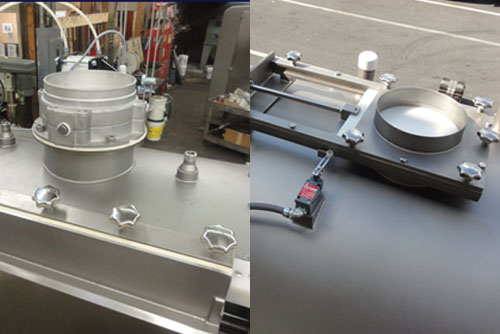

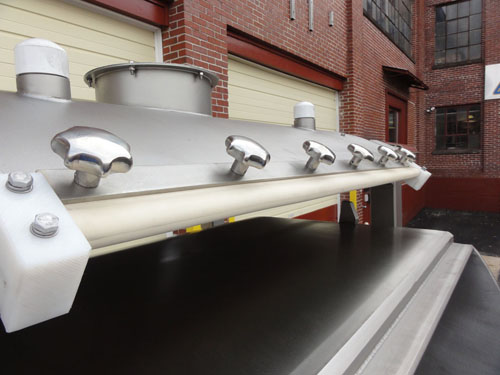

Bulk dry ingredient
Bulk dry ingredient

Bulk dry ingredient openings can be slide gate or butterfly style as desired.

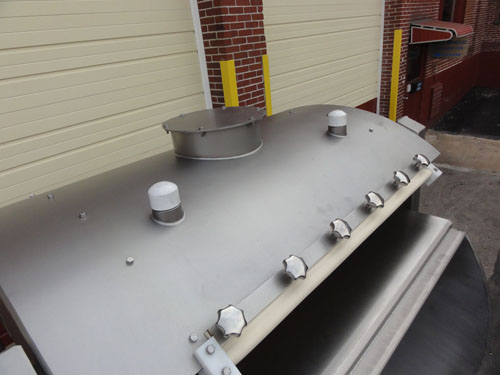

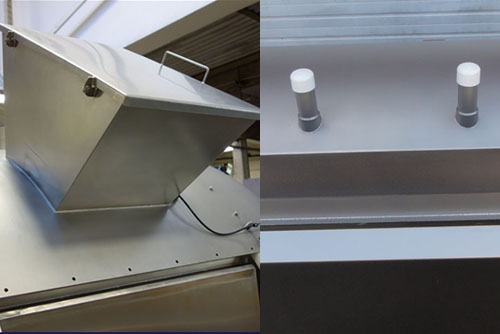

Manual Ingredient inlet
Manual Ingredient inlet

Manual Ingredient inlet openings can be designed and fabricated to meet your exact needs.

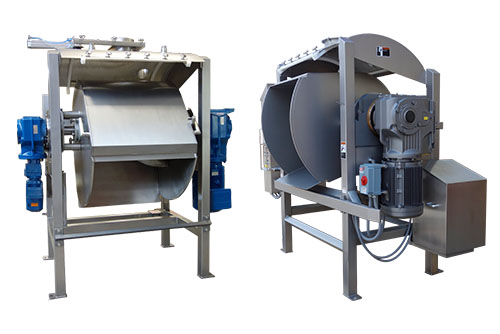

Bowl overtilt angles
Bowl overtilt angles

Bowl overtilt angles can be from 90 to 160 degrees to accomodate your exact needs.
