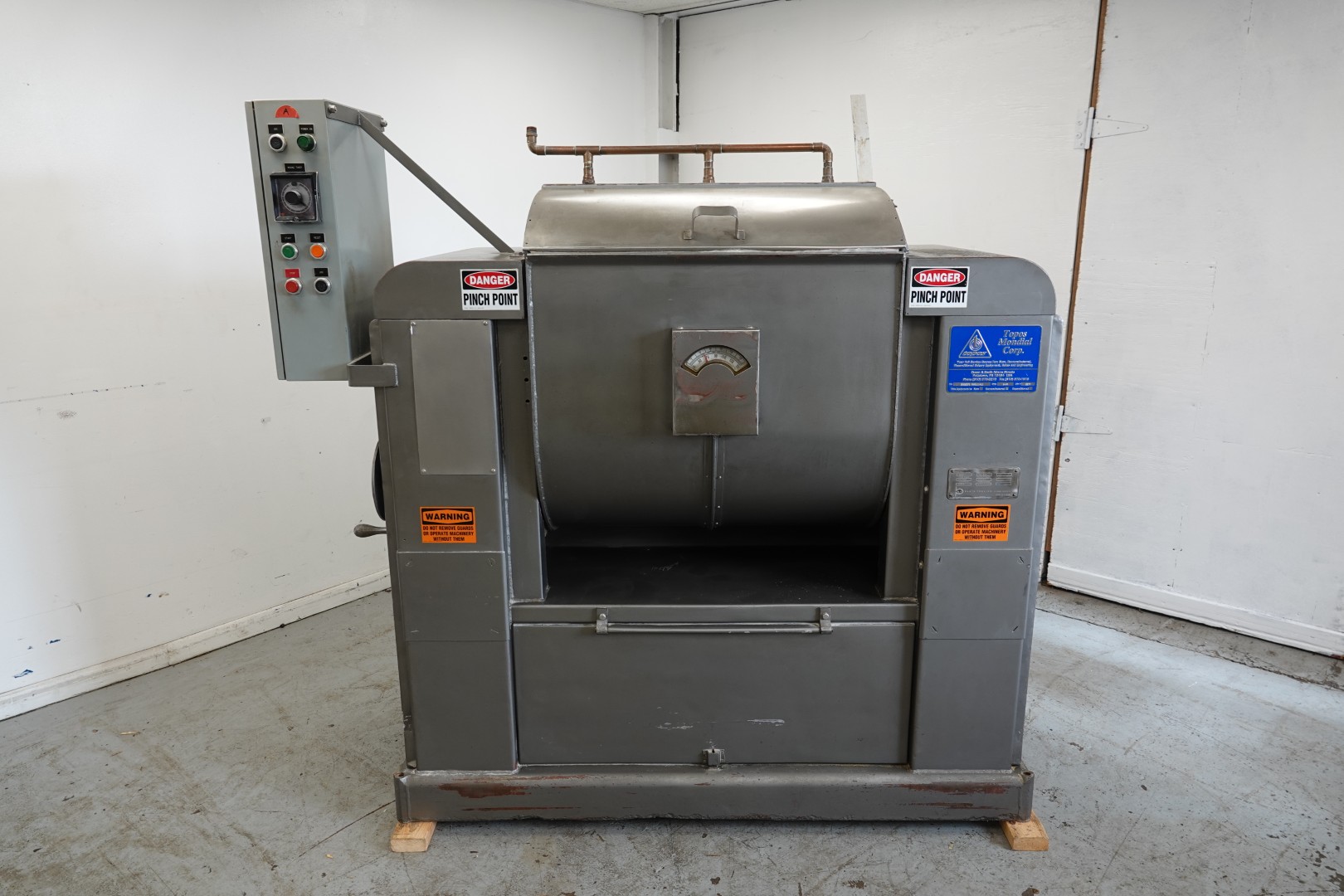

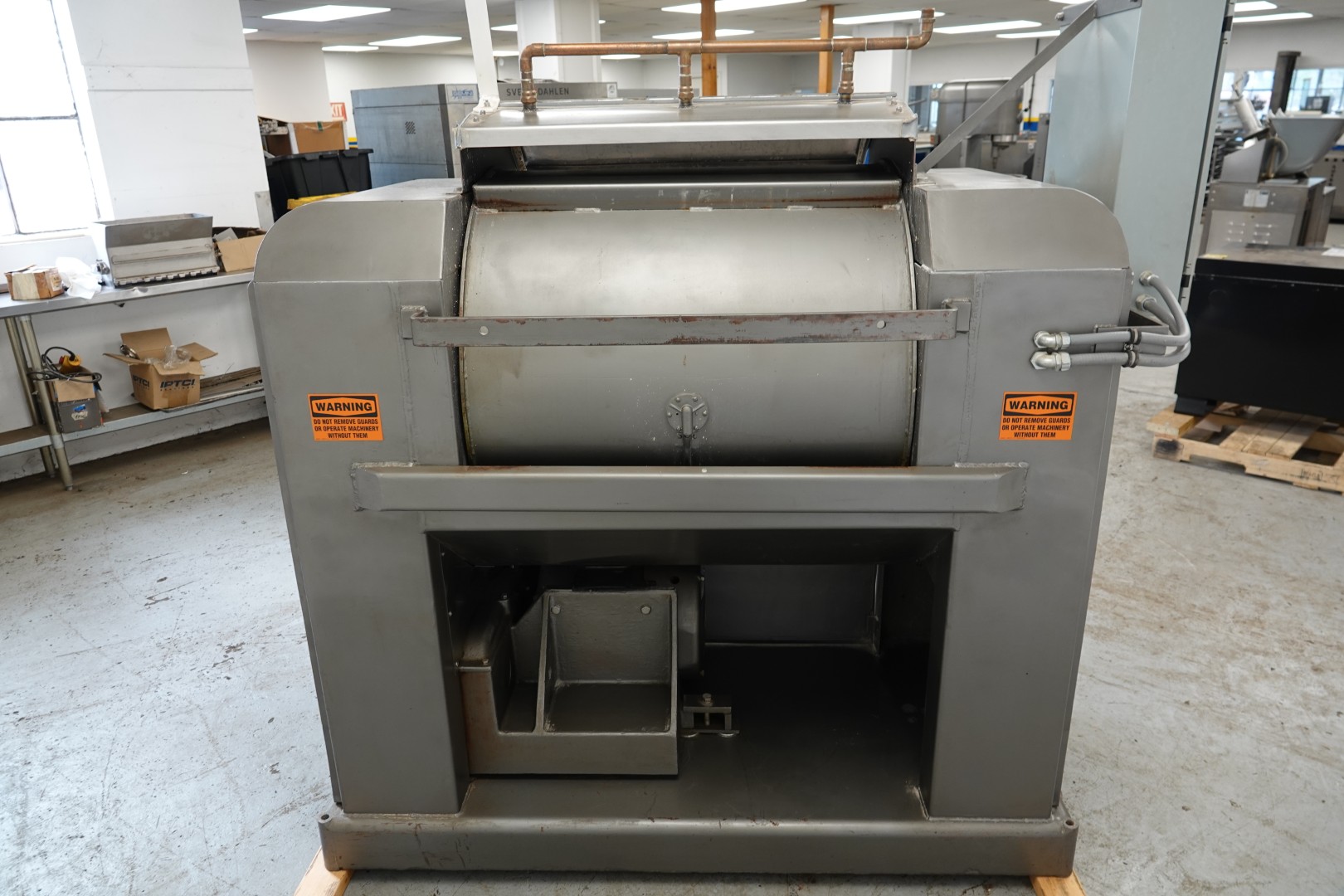

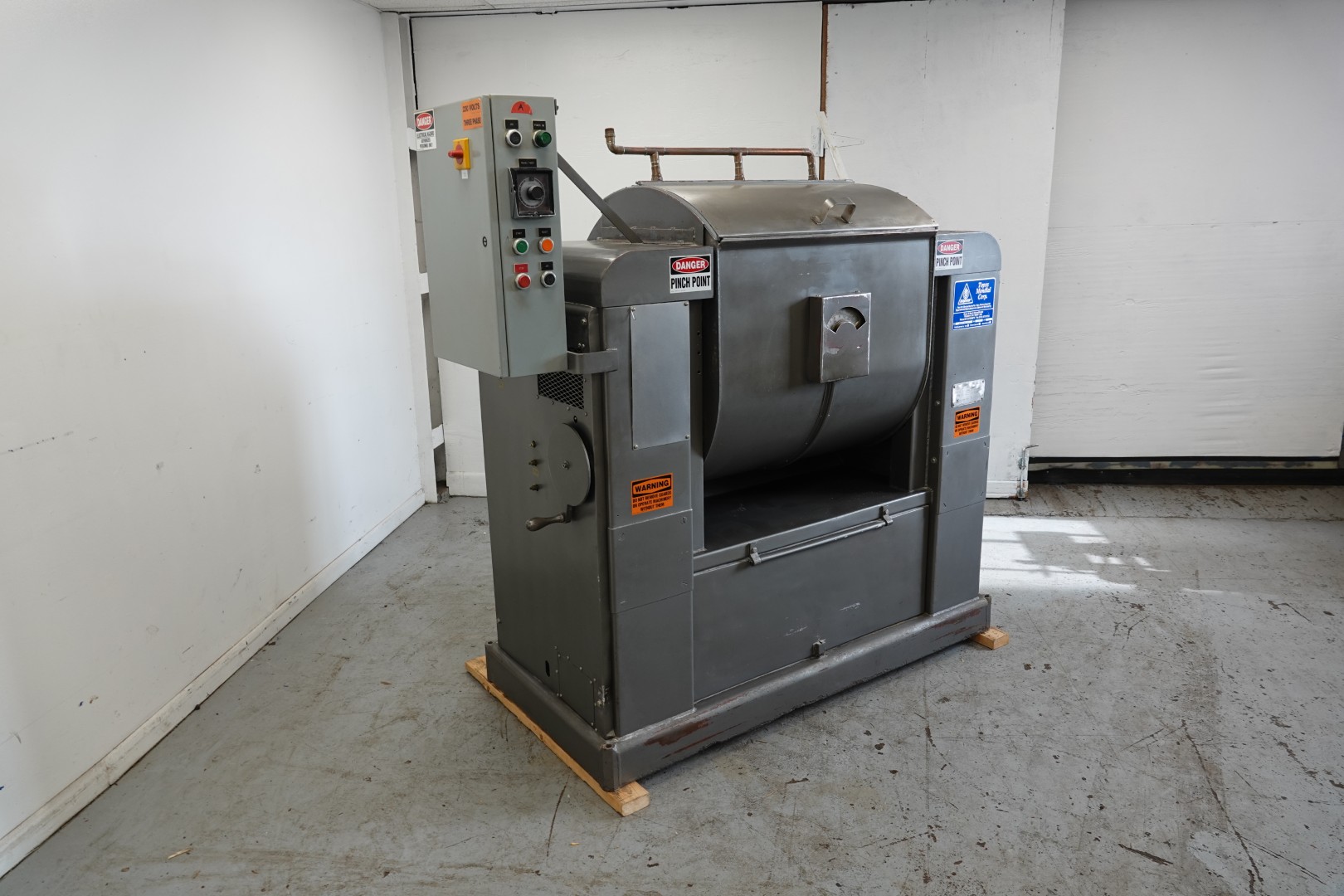

Baker Perkins horizontal tilt bowl dough mixer

Baker Perkins horizontal tilt bowl dough mixer designed for consistent, efficient and gentle dough development. Features a dual roller bar agitator mixing system with “S” shaped spiders for uniform kneading. It has a heavy-duty gearmotor drive powered by a 7.5 HP General Electric motor (208V, 3 phase, 60 Hz). This mixer can gently and efficiently mix up to 500 lbs. of a firm pizza dough and all other higher abruption doughs as well.

It utilizes simple operator controls and is built for simplicity and durability. These mixers were designed and used in the US Army field bakery mobile trailers. This unit is well-suited for small to mid-scale bakery production.

Key Specifications

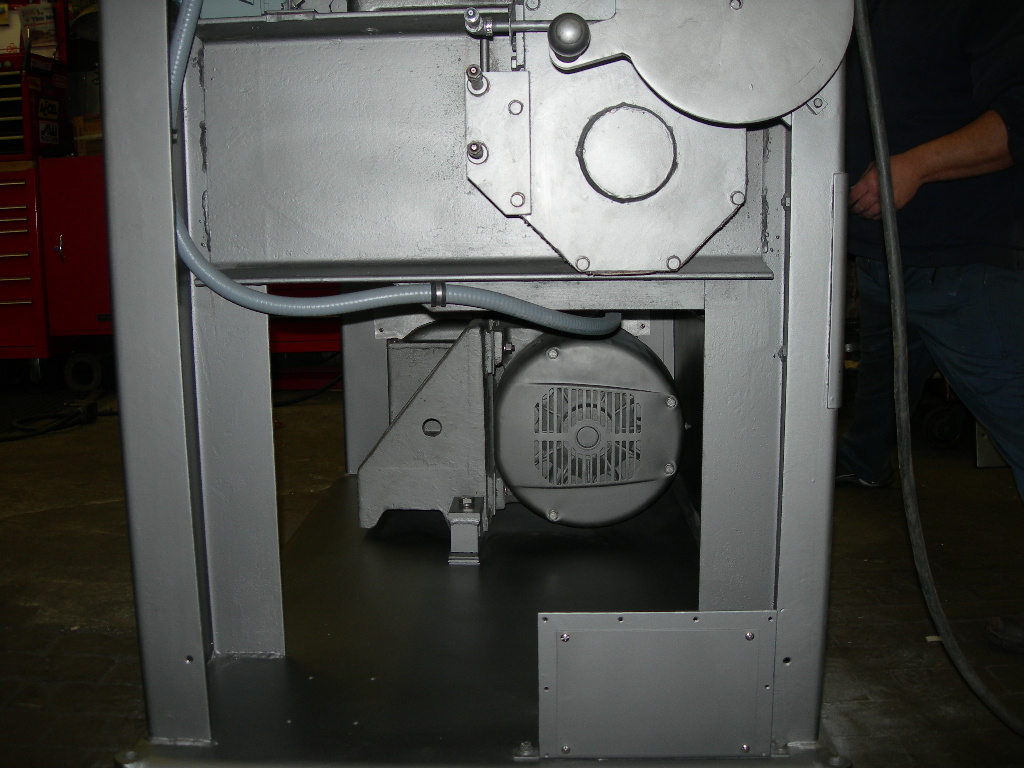

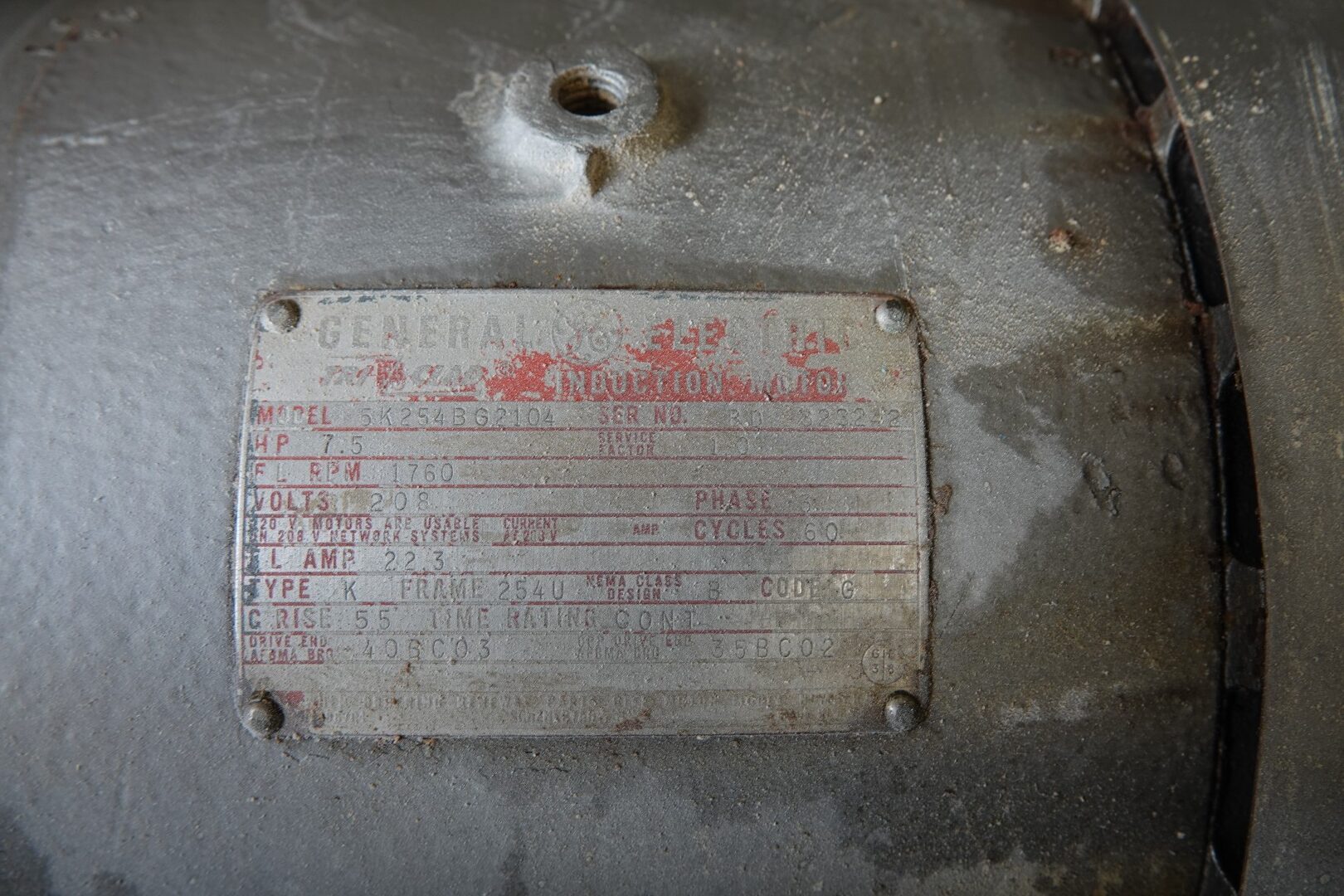

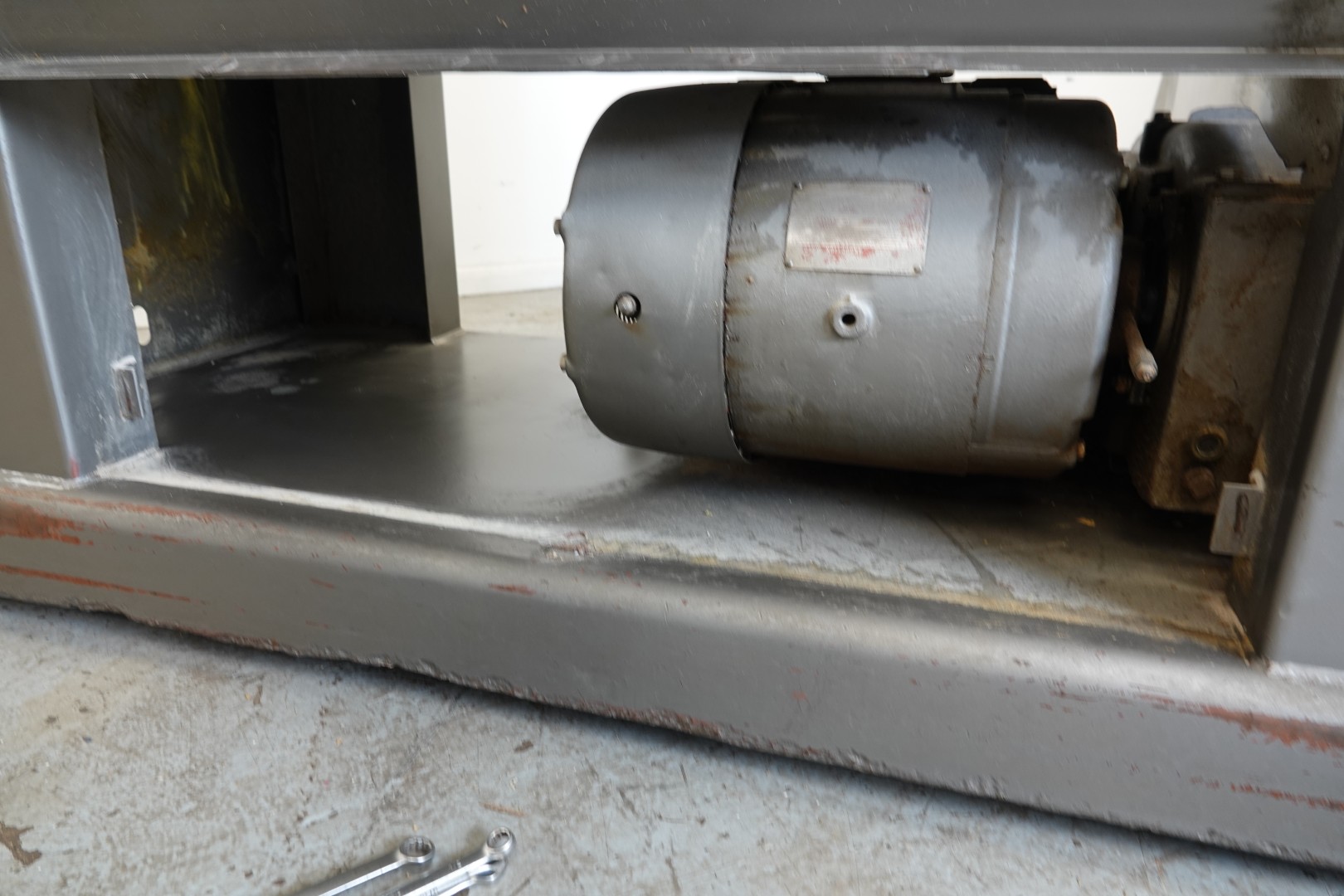

• 7.5 HP GE gearmotor drive
• 208V, 3 phase, 60 Hz primary powered

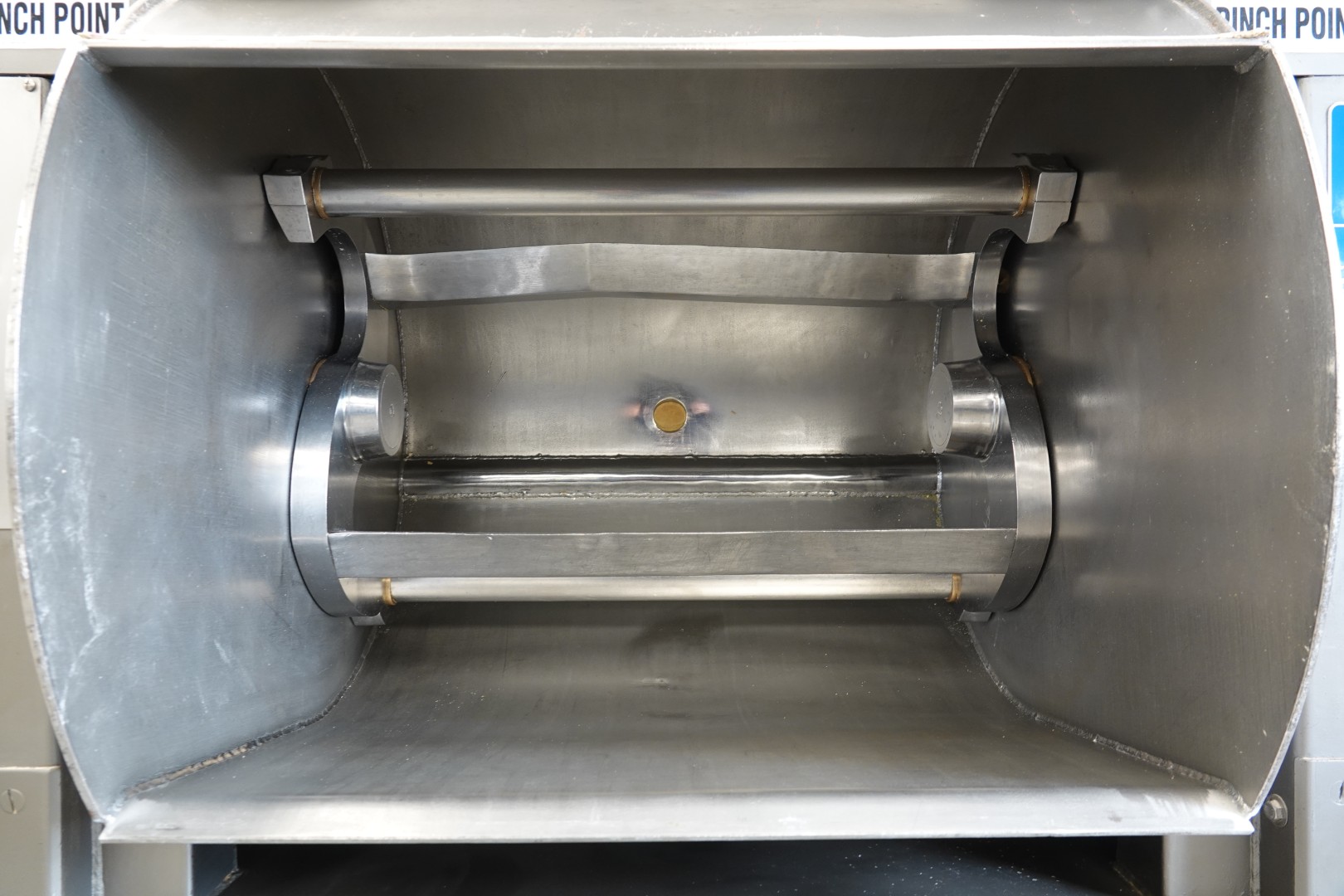

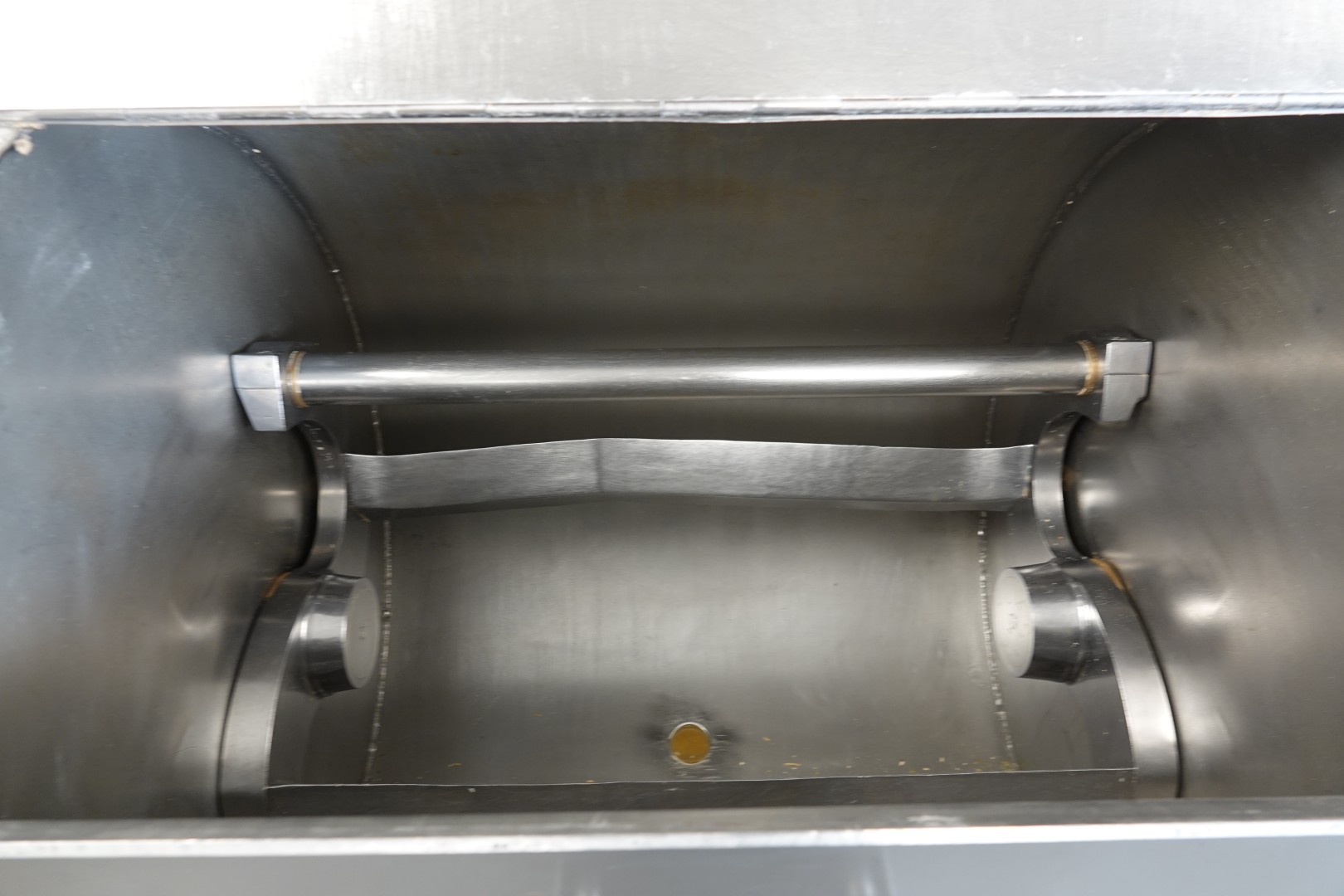

• Horizontal, dual roller bar mixing agitator, for efficient kneading with low heat pick-up on the dough.
• Up to 500 lb. yeast raised dough mixing capacity
• Heavy-duty industrial construction

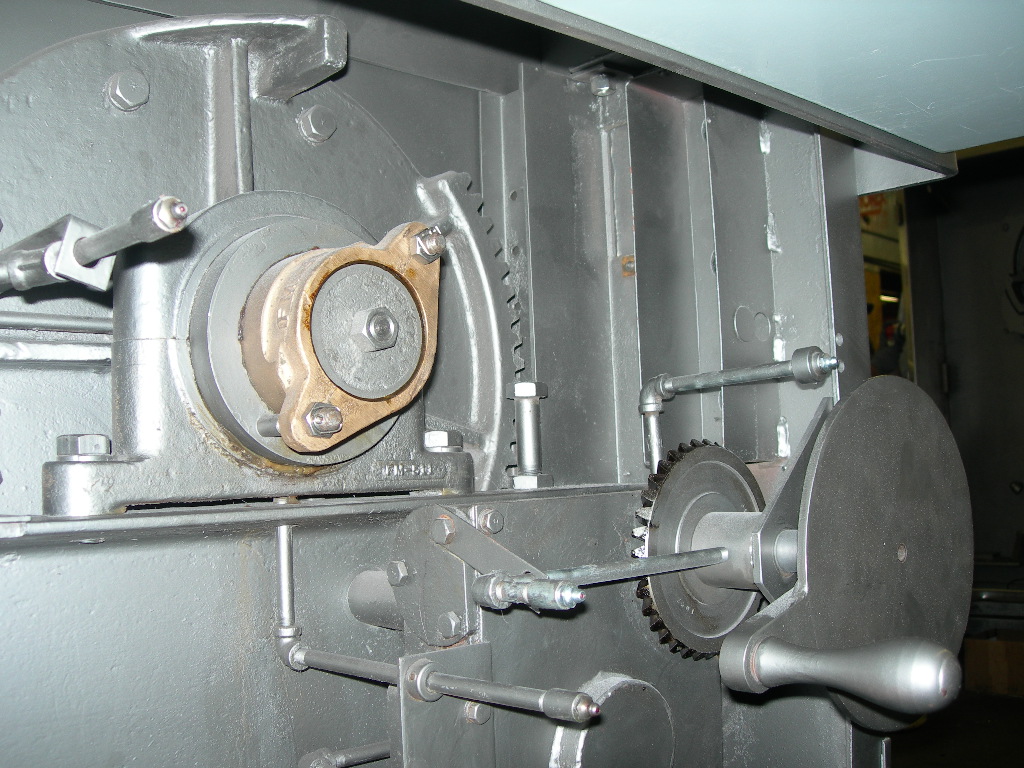

• Easy to turn, hand crank bowl tilting

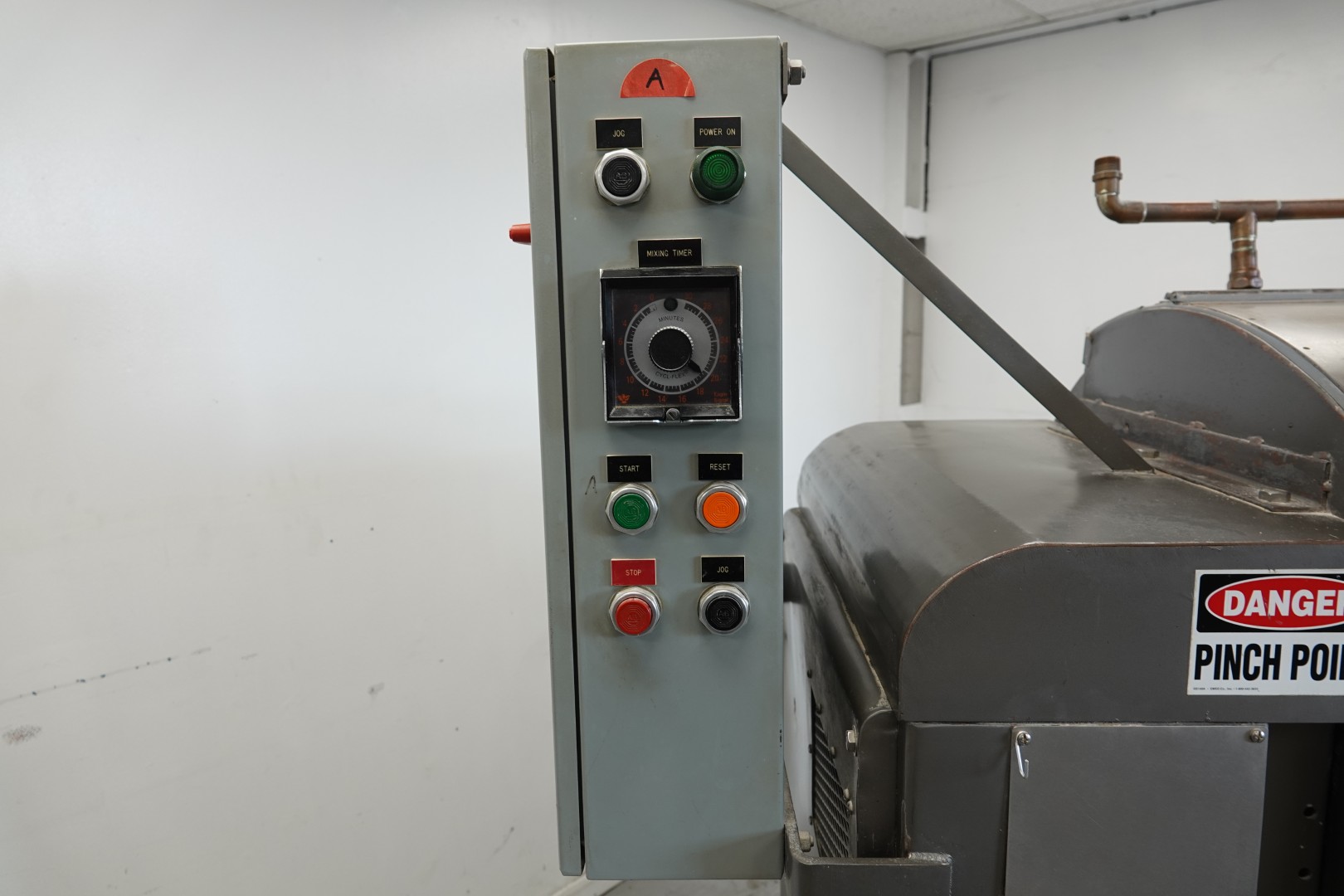

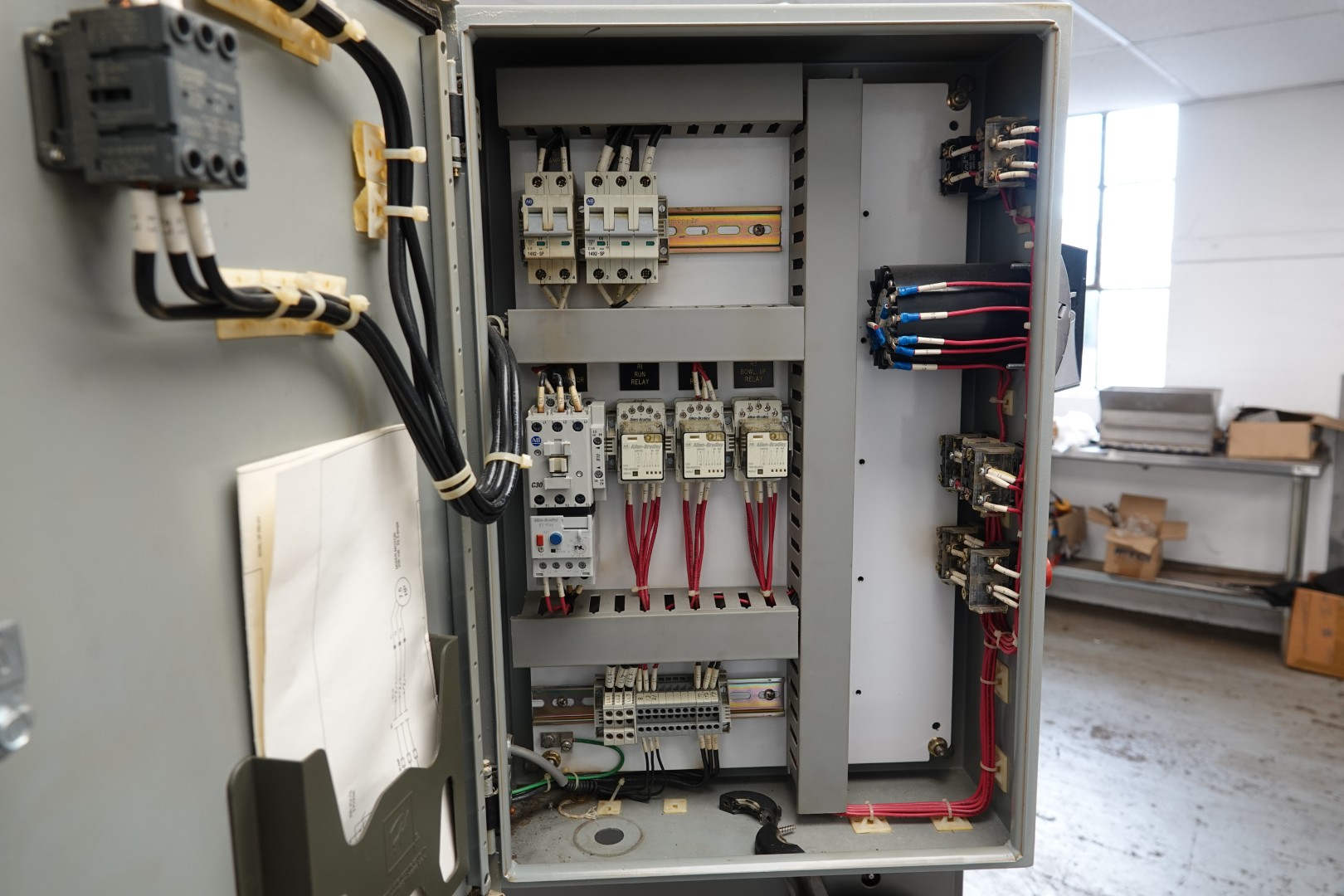

• Updated, unit mounted electrical control panel with mostly AB components
• One [1] speed mixing using an Eagle Cycle Flex timer
• Hinged opening, top front part of the bowl canopy for ease of access and mixing inspection

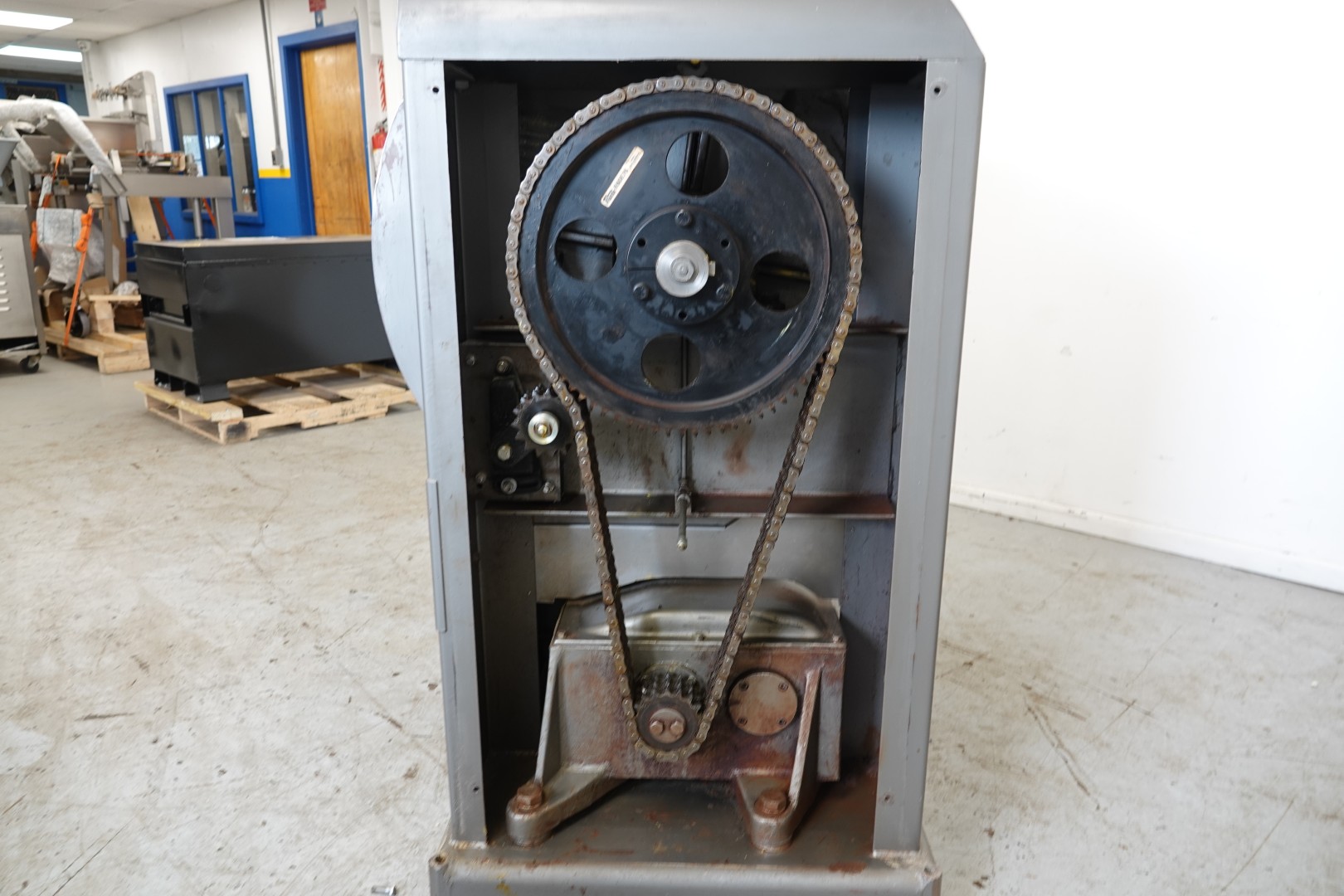

• Rugged, single side drive with one [1] mixing

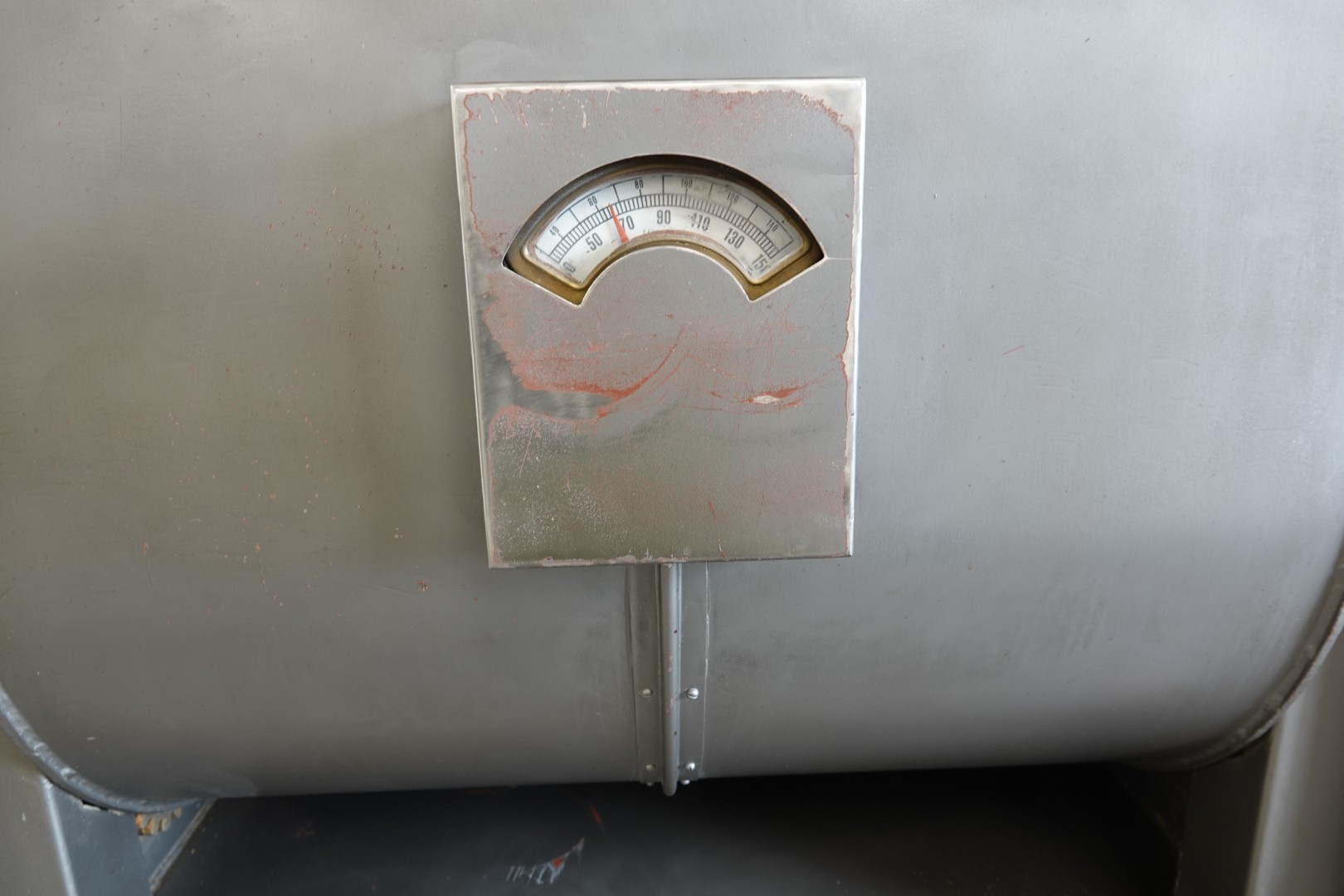

• Bowl mounted dough temperature thermometer.
• A longstanding, gentle and proven mixing design
