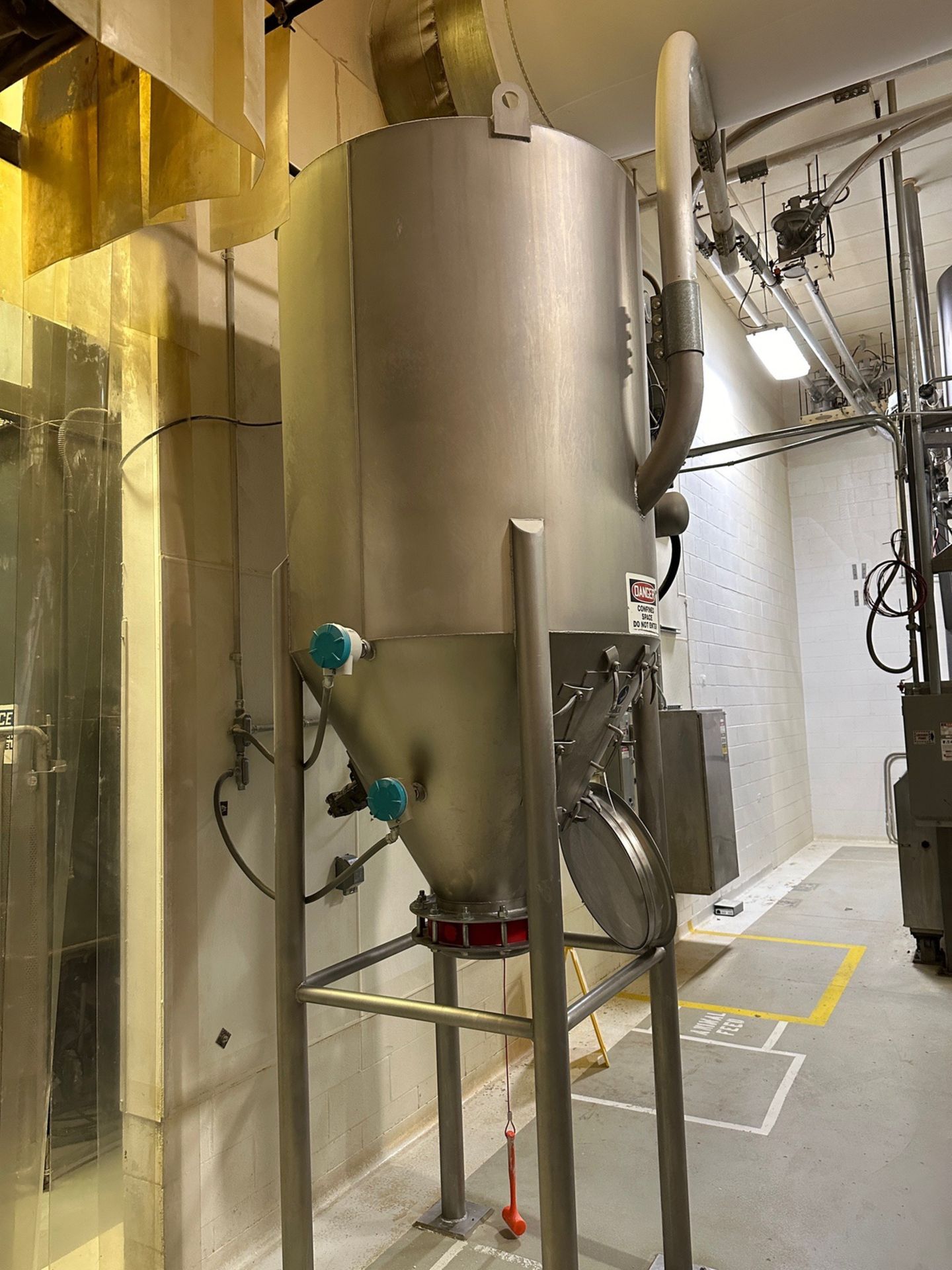

Pre-Owned Shick Dusting Flour Hopper

General Specifications:

• Usable Capacity: 20 cubic feet
• Construction: 304 stainless steel
• Hopper Design: 60° conical hopper
• Outlet: 12” flanged outlet
• Inlets: (2) 4” inlets
• Support: (4) support legs
• Vibratory Feature: Pneumatic vibrato pad for consistent flow

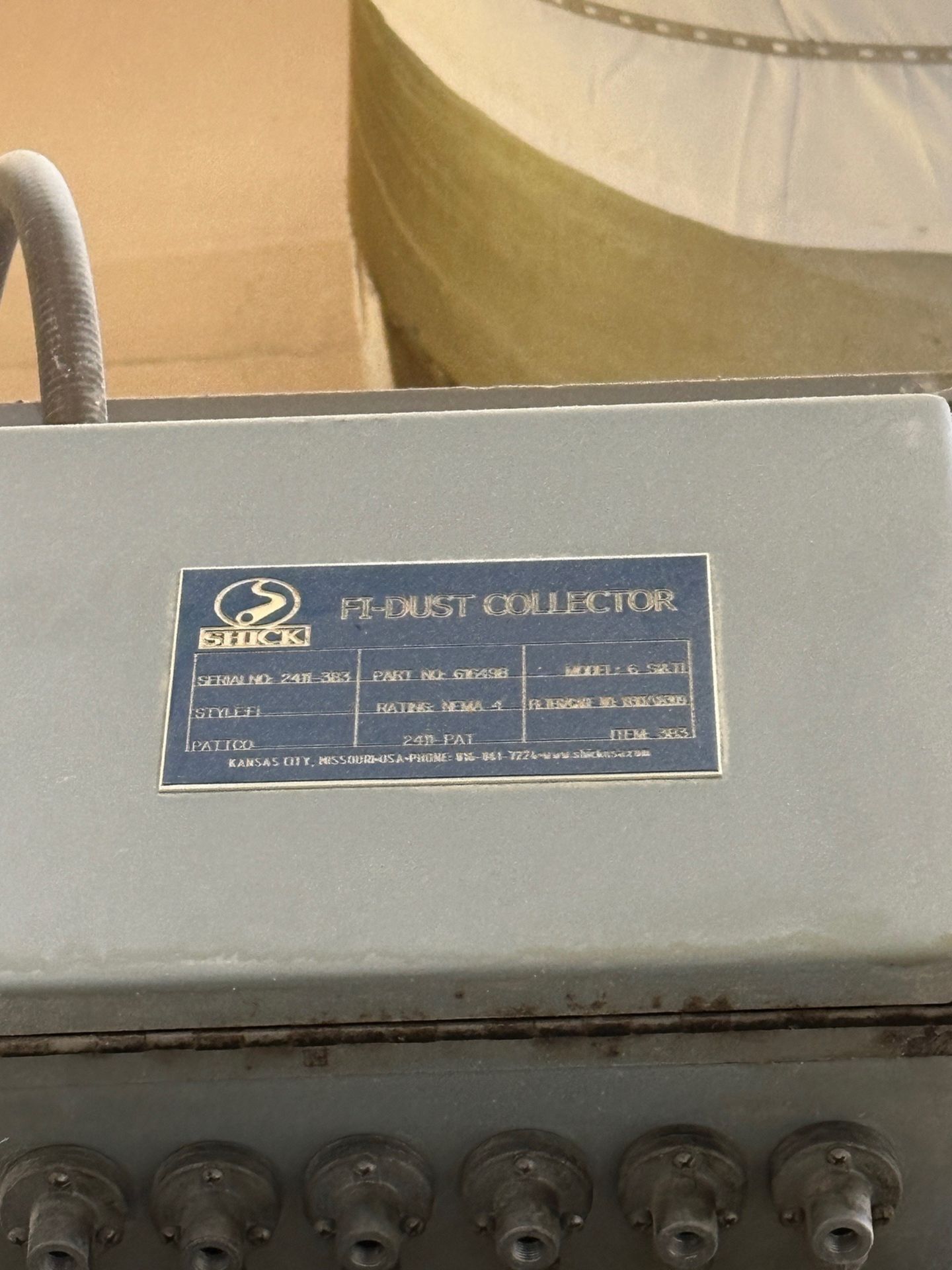

Filtration System – Shick Model 6-SI-1000:

• (6) 1000 mm long, high-efficiency spun bonded polyester filter elements
• 79 sq. ft. of cloth area – capable of filtering 794 CFM of air
• Side element removal design for easier maintenance
• Hinged, gasketed core housing with quick-release clamps
• Compressed air header with 0–200 PSI gauge
• (8) ¾” diaphragm valves
• Pressure differential gauge kit
• 120 VAC, NEMA 4 timer box
  • Pre-wired adjustable timer board
  • Includes solenoid valves

Additional Features:

• (2) Radio frequency level indicators (High/Low)
• Timed impact vibrator system:
  • Filter / Regulator / Lubricator
  • Air hose and solenoid
  • Fully assembled and installed
• 12” Manual butterfly valve assembly with swedged outlet transition
• 12” Flexible discharge kit

Highlights:

• Reliable flour dusting and ingredient handling solution
• Built for industrial use – durable and efficient
• A cost-effective alternative to new equipment
• Ideal for bakeries, food processors, or dry goods handling
