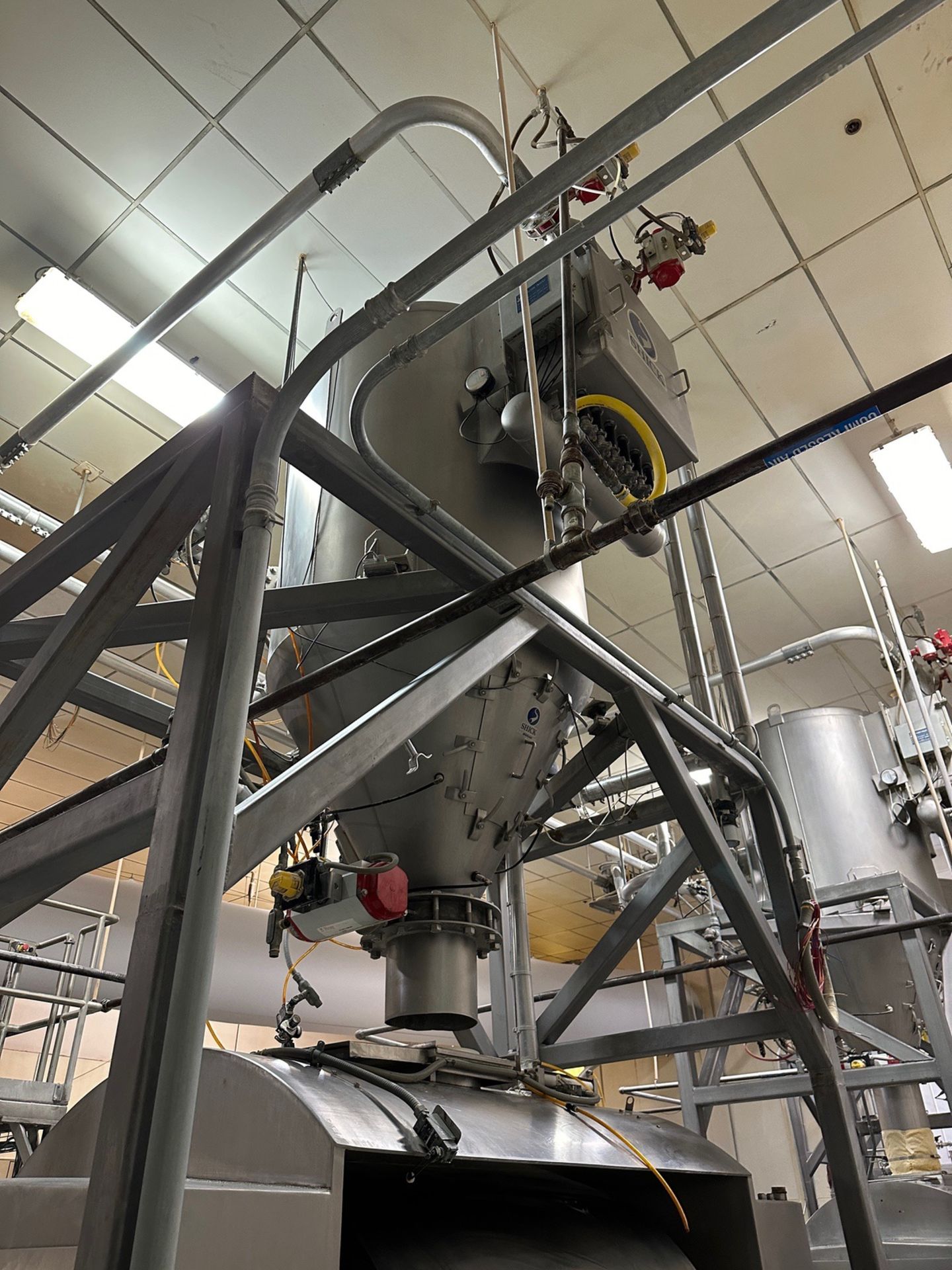

Pre-Owned Shick Vacuum Scale Hopper

General Specifications:

• Usable Capacity: 20 cubic feet
• Construction: 304 stainless steel
• Hopper Design: 60° conical bottom for efficient product flow
• Weighing System: 3-point lug load cell design
• Outlet: 12” flanged
• Inlets: (2) 4”
• Flow Aid: Pneumatic vibrato pad to assist product discharge

Filtration System – Shick Model 6-SI-1000:

• (6) 1000 mm long high-efficiency spun bonded polyester filter elements
• 79 sq. ft. of cloth area – cleans up to 794 CFM of air
• Side element removal for simplified maintenance
• Hinged and gasketed core housing with quick-release clamps
• Compressed air header with 0–200 PSI gauge
• (8) ¾” diaphragm valves
• Pressure differential gauge kit
• 120 VAC, NEMA 4-rated timer box
  • Pre-wired adjustable timer board
  • Includes solenoid valves

Additional Features Included:

• Timed Impact Vibrator System
  • Filter / Regulator / Lubricator
  • Air hose and solenoid
  • Assembled and installed
• (4) Aeration Flow Pads
  • Polyflow tubing
  • NEMA 4-rated solenoid and filter regulator
  • Designed as high-pressure, low-air-volume devices to enhance product discharge
• Shick 12” Diameter Butterfly Valve Assembly
  • Cast aluminum housing
  • Stainless steel sleeve and beveled damper
  • Stainless steel shaft
  • Pneumatic air cylinders
  • Solenoid and (2) SPDY limit switches
  • White food-grade gasket kit and flex kit
• Load Cell Kit
  • (3) Compression-style load cells
  • Includes summing junction box and cable
• Floor Support Frame
  • Shick design
  • Box beam, carbon steel construction

Highlights:

• Fully equipped and ready to integrate
• Designed for vacuum conveying and precision ingredient weighing
• Includes aeration pads and discharge enhancements
• A great opportunity for bakeries and food manufacturers seeking a complete, high-quality hopper system at a used equipment price
