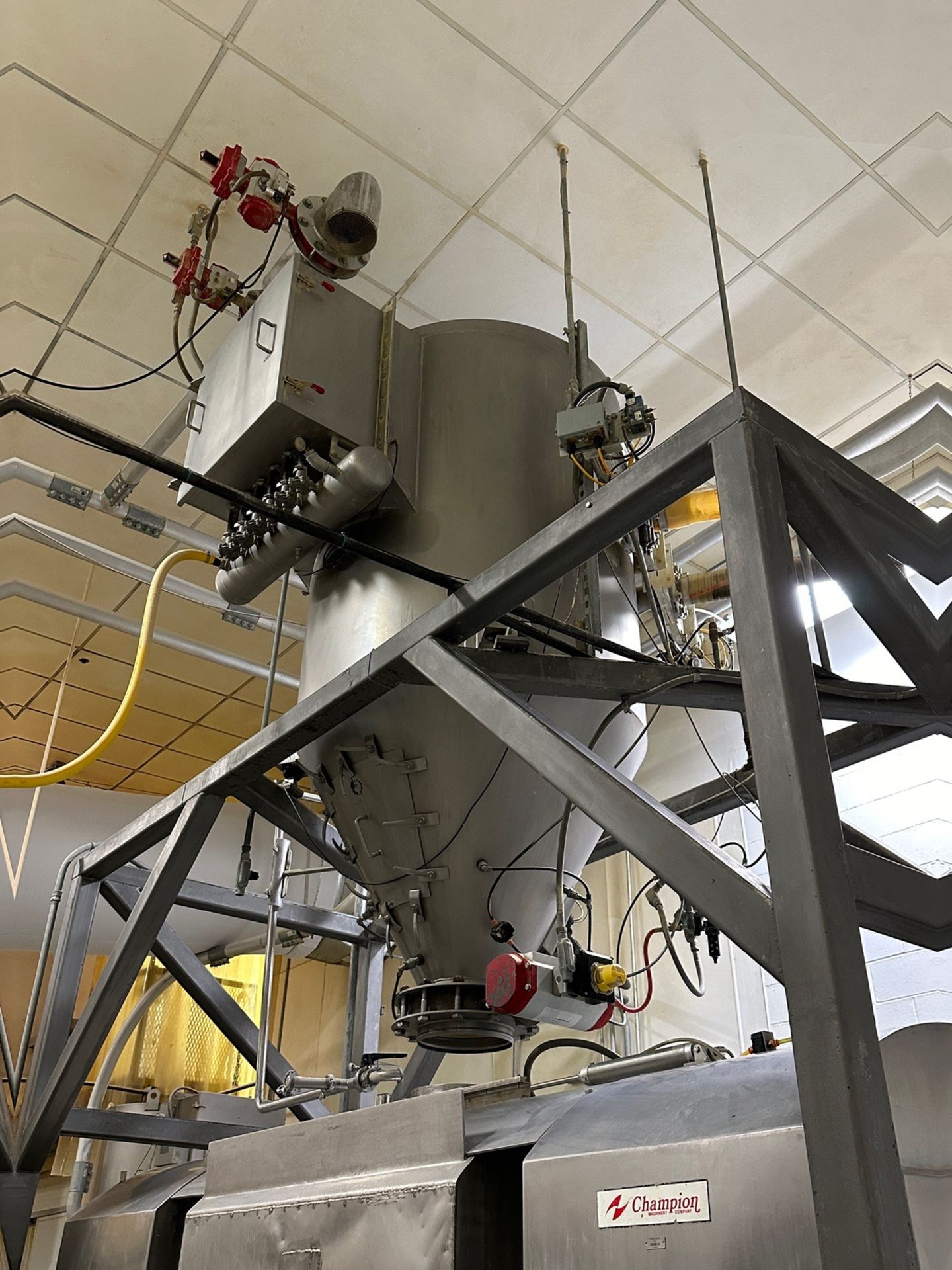

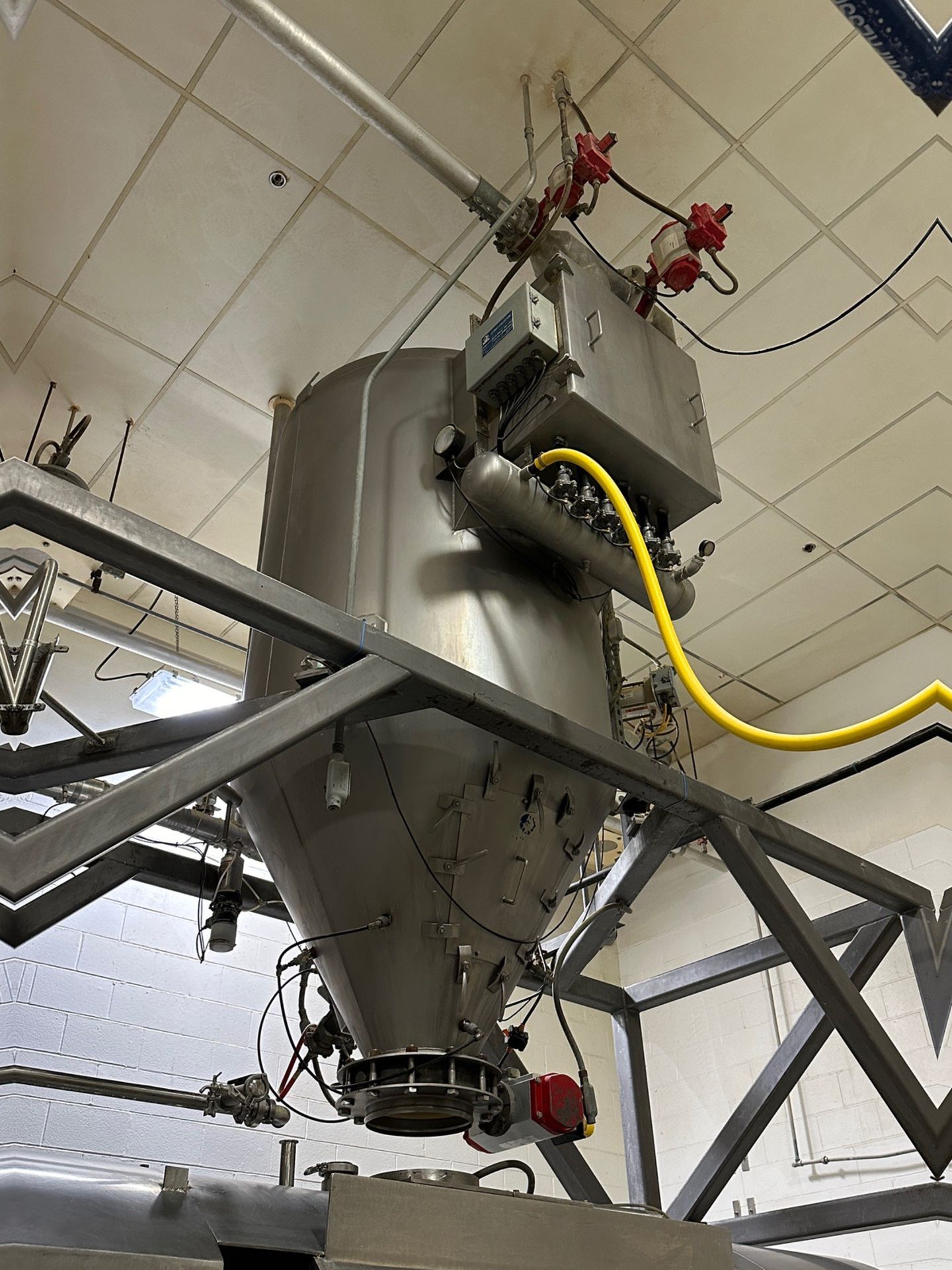

Pre-Owned Shick Vacuum Scale Hopper

General Specifications:

• Usable Capacity: 20 cubic feet
• Construction: 304 stainless steel
• Hopper Design: 60° conical bottom
• Weighing System: 3-point lug load cell design
• Outlet: 12” flanged outlet
• Inlets: (2) 4”
• Flow Aid: Pneumatic vibrato pad for improved material discharge

Filtration System – Shick Model 6-SI-1000:

• (6) 1000 mm high-efficiency spun bonded polyester filter elements
• 79 sq. ft. of cloth area – filters up to 794 CFM of air
• Side element removal for easy access and maintenance
• Hinged and gasketed core housing with quick-release clamps
• Compressed air header with 0–200 PSI gauge
• (8) ¾” diaphragm valves
• Pressure differential gauge kit
• 120 VAC, NEMA 4 timer box with pre-wired adjustable timer board and solenoid valves

Additional Features Included:

• Timed impact vibrator system
  • Filter/regulator/lubricator
  • Air hose and solenoid
  • Fully assembled and installed
• Shick 12” Diameter Butterfly Valve Assembly
  • Cast aluminum housing
  • Stainless steel sleeve and beveled damper
  • Stainless steel shaft
  • Pneumatic air cylinders
  • Solenoid and (2) SPDY limit switches
  • White food-grade gasket kit and flex kit
• Load Cell Kit
  • (3) Compression-style load cells
  • Summing junction box and cable
• Floor Support Frames
  • Box beam design
  • Carbon steel construction

Note: The Following Items Are NOT Included (as shown in photos):

• (4) Aeration flow pads
• Polyflow tubing
• NEMA 4 solenoid and filter regulator

(These items are typically used to enhance product discharge through high-pressure, low-air-volume flow.)

Highlights:

• Fully integrated vacuum scale hopper system
• Built to Shick’s industrial standards for accuracy and performance
• Excellent option for ingredient weighing, batching, and pneumatic conveying applications
• Pre-owned and ready for reinstallation in your production line
